Once you've finished setting up your QT Py RP2040 with CircuitPython, you can access the code and necessary libraries by downloading the Project Bundle.
To do this, click on the Download Project Bundle button in the window below. It will download to your computer as a zipped folder.
# SPDX-FileCopyrightText: Copyright (c) 2025 Liz Clark for Adafruit Industries
#
# SPDX-License-Identifier: MIT
import time
import board
import keypad
import supervisor
import usb_hid
from adafruit_hid.keyboard import Keyboard
from adafruit_hid.keyboard_layout_us import KeyboardLayoutUS
# Dictionary of macros for single keys and combinations
macros = {
# Single key macros
(0,): "good",
(1,): "great",
(2,): "nice",
(3,): "awesome",
(4,): "cool",
# Combination macros
(0, 2, 4): "looks good to me",
(0, 2): "be right back",
(2, 4): "see you soon",
(1, 3): "sounds good",
}
KEY_PINS = (
board.A1,
board.A2,
board.A3,
board.MISO,
board.MOSI,
)
keys = keypad.Keys(
KEY_PINS,
value_when_pressed=False,
pull=True,
interval=0.01,
max_events=64,
debounce_threshold=3
)
keyboard = Keyboard(usb_hid.devices)
keyboard_layout = KeyboardLayoutUS(keyboard)
# need to wait longer for 3 key combos
LARGER_COMBOS = {
(0, 2): (0, 2, 4),
(2, 4): (0, 2, 4),
}
# How long to wait for possible additional keys in a combo (ms)
COMBO_WAIT_TIME = 150 # Wait 150ms to see if more keys are coming
# How long to wait for a single key before executing (ms)
SINGLE_KEY_TIMEOUT_MS = 80
# Minimum time between macro executions (ms)
MACRO_COOLDOWN_MS = 300
# Store the current state of all keys
key_states = {i: False for i in range(len(KEY_PINS))}
# Create a reusable Event object to avoid memory allocations
reusable_event = keypad.Event()
# Track timing and state
last_macro_time = 0
key_combo_start_time = 0
waiting_for_combo = False
last_executed_combo = None
while True:
# Process all events in the queue
keys_changed = False
while keys.events:
if keys.events.get_into(reusable_event):
# Check if key state actually changed
old_state = key_states[reusable_event.key_number]
key_states[reusable_event.key_number] = reusable_event.pressed
if old_state != reusable_event.pressed:
print(f"Key {reusable_event.key_number} " +
f"{'pressed' if reusable_event.pressed else 'released'}")
keys_changed = True
# Get currently pressed keys as a sorted tuple
current_pressed_keys = tuple(sorted(k for k, v in key_states.items() if v))
current_time = supervisor.ticks_ms()
# When all keys are released, reset tracking
if not current_pressed_keys:
waiting_for_combo = False
last_executed_combo = None
time.sleep(0.01)
continue
# If this is a new key pattern or we just started
if keys_changed:
# If we weren't tracking before, start now
if not waiting_for_combo:
key_combo_start_time = current_time
waiting_for_combo = True
# If the pressed keys have changed, update the timer
if current_pressed_keys != last_executed_combo:
key_combo_start_time = current_time
# Skip if we've already executed this exact combination
if current_pressed_keys == last_executed_combo:
time.sleep(0.01)
continue
# Determine if we should execute a macro now
should_execute = False
wait_more = False
# If this is a potential part of a larger combo, wait longer
if current_pressed_keys in LARGER_COMBOS:
# Only wait if we've been waiting less than the combo wait time
if (current_time - key_combo_start_time) < COMBO_WAIT_TIME:
wait_more = True
else:
# We've waited long enough, go ahead and execute
should_execute = True
# Immediate execution for multi-key combinations that aren't potential parts of larger combos
elif len(current_pressed_keys) > 1:
should_execute = True
# Execute single key after timeout
elif waiting_for_combo and (current_time - key_combo_start_time) >= SINGLE_KEY_TIMEOUT_MS:
should_execute = True
# If we need to wait more, skip to the next iteration
if wait_more:
time.sleep(0.01)
continue
# Execute the macro if conditions are met
if should_execute and current_pressed_keys in macros:
# Only execute if cooldown period has passed
if current_time - last_macro_time >= MACRO_COOLDOWN_MS:
print(f"MACRO: {macros[current_pressed_keys]}")
keyboard_layout.write(macros[current_pressed_keys])
last_macro_time = current_time
last_executed_combo = current_pressed_keys
time.sleep(0.01)
Upload the Code and Libraries to the QT Py RP2040
After downloading the Project Bundle, plug your QT Py RP2040 into the computer's USB port with a known good USB data+power cable. You should see a new flash drive appear in the computer's File Explorer or Finder (depending on your operating system) called CIRCUITPY. Unzip the folder and copy the following items to the QT Py RP2040's CIRCUITPY drive.
- lib folder
- code.py

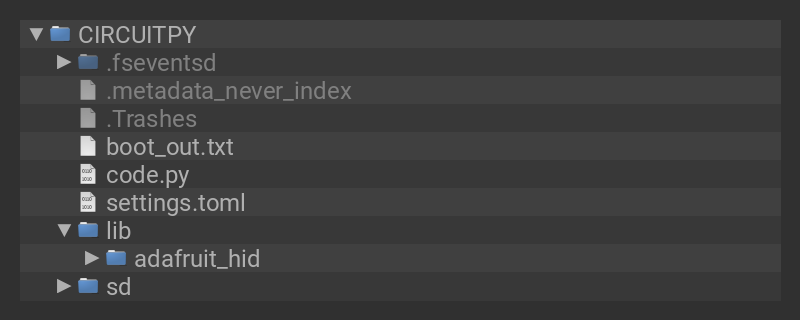

Your QT Py RP2040 CIRCUITPY drive should look like this after copying the lib folder and code.py file:
How the Code Works
There is a dictionary at the top of the code called macros. In macros, the keys and strings are listed out. If you want to change the default macros, you'll want to edit this dictionary.
macros = {
# Single key macros
(0,): "good",
(1,): "great",
(2,): "nice",
(3,): "awesome",
(4,): "cool",
# Combination macros
(0, 2, 4): "looks good to me",
(0, 2): "be right back",
(2, 4): "see you soon",
(1, 3): "sounds good",
}
Keypad
The keypad module is used to handle the key presses. These key events will be passed to the USB HID keyboard object in the loop.
KEY_PINS = (
board.A1,
board.A2,
board.A3,
board.MISO,
board.MOSI,
)
keys = keypad.Keys(
KEY_PINS,
value_when_pressed=False,
pull=True,
interval=0.01,
max_events=64,
debounce_threshold=3
)
keyboard = Keyboard(usb_hid.devices)
keyboard_layout = KeyboardLayoutUS(keyboard)
Timing
There are a few timing variables that are used in the loop to figure out if you are pressing a single key macro or a multi key macro. Instead of creating a new event each time a key is pressed in the loop, a reusable event is used. This way the multi key macros will work.
# need to wait longer for 3 key combos
LARGER_COMBOS = {
(0, 2): (0, 2, 4),
(2, 4): (0, 2, 4),
}
# How long to wait for possible additional keys in a combo (ms)
COMBO_WAIT_TIME = 150 # Wait 150ms to see if more keys are coming
# How long to wait for a single key before executing (ms)
SINGLE_KEY_TIMEOUT_MS = 80
# Minimum time between macro executions (ms)
MACRO_COOLDOWN_MS = 300
# Store the current state of all keys
key_states = {i: False for i in range(len(KEY_PINS))}
# Create a reusable Event object to avoid memory allocations
reusable_event = keypad.Event()
# Track timing and state
last_macro_time = 0
key_combo_start_time = 0
waiting_for_combo = False
last_executed_combo = None
The Loop
In the loop, a check is done to see if new keys have been pressed. The time is tracked with ticks to determine if a single key or multi key macro is being executed. When the keys are released, all of the tracking is reset.
while True:
# Process all events in the queue
keys_changed = False
while keys.events:
if keys.events.get_into(reusable_event):
# Check if key state actually changed
old_state = key_states[reusable_event.key_number]
key_states[reusable_event.key_number] = reusable_event.pressed
if old_state != reusable_event.pressed:
print(f"Key {reusable_event.key_number} " +
f"{'pressed' if reusable_event.pressed else 'released'}")
keys_changed = True
# Get currently pressed keys as a sorted tuple
current_pressed_keys = tuple(sorted(k for k, v in key_states.items() if v))
current_time = supervisor.ticks_ms()
# When all keys are released, reset tracking
if not current_pressed_keys:
waiting_for_combo = False
last_executed_combo = None
time.sleep(0.01)
continue
# If this is a new key pattern or we just started
if keys_changed:
# If we weren't tracking before, start now
if not waiting_for_combo:
key_combo_start_time = current_time
waiting_for_combo = True
# If the pressed keys have changed, update the timer
if current_pressed_keys != last_executed_combo:
key_combo_start_time = current_time
# Skip if we've already executed this exact combination
if current_pressed_keys == last_executed_combo:
time.sleep(0.01)
continue
When the macro type has been determined, the matching string from the macros dictionary is sent as a USB HID message.
# Determine if we should execute a macro now
should_execute = False
wait_more = False
# If this is a potential part of a larger combo, wait longer
if current_pressed_keys in LARGER_COMBOS:
# Only wait if we've been waiting less than the combo wait time
if (current_time - key_combo_start_time) < COMBO_WAIT_TIME:
wait_more = True
else:
# We've waited long enough, go ahead and execute
should_execute = True
# Immediate execution for multi-key combinations that aren't potential parts of larger combos
elif len(current_pressed_keys) > 1:
should_execute = True
# Execute single key after timeout
elif waiting_for_combo and (current_time - key_combo_start_time) >= SINGLE_KEY_TIMEOUT_MS:
should_execute = True
# If we need to wait more, skip to the next iteration
if wait_more:
time.sleep(0.01)
continue
# Execute the macro if conditions are met
if should_execute and current_pressed_keys in macros:
# Only execute if cooldown period has passed
if current_time - last_macro_time >= MACRO_COOLDOWN_MS:
print(f"MACRO: {macros[current_pressed_keys]}")
keyboard_layout.write(macros[current_pressed_keys])
last_macro_time = current_time
last_executed_combo = current_pressed_keys
time.sleep(0.01)
Page last edited May 27, 2025
