Project guide
Code
Getting the Program Files
To use the application, you need to obtain code.py with the program, and the other project files to place on the Fruit Jam CIRCUITPY drive.
Thankfully, this can be done in one go. In the example below, click the Download Project Bundle button below to download the necessary libraries, the code.py file, and other project files in a zip file.
Connect your board to your computer via a known good data+power USB cable. The board should show up in your File Explorer/Finder (depending on your operating system) as a flash drive named CIRCUITPY.

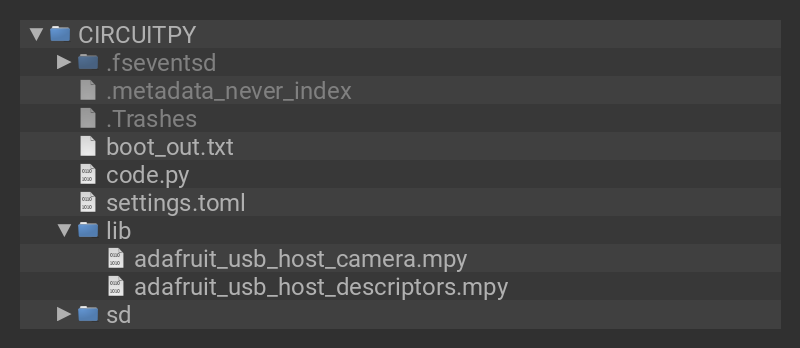

Extract the contents of the zip file, copy the lib directory files to CIRCUITPY/lib. Copy the code.py file to your CIRCUITPY drive. The program should self start.
# SPDX-FileCopyrightText: Copyright (c) 2026 Tim Cocks for Adafruit Industries
#
# SPDX-License-Identifier: MIT
"""USB webcam with live filters on the Fruit Jam.
Frames come from a UVC webcam on a USB host port (adafruit_usb_host_camera),
are decoded with jpegio, run through the currently selected bitmapfilter effect,
and shown on the DVI output with picogame.
Taking a photo saves the camera's JPEG as-is; when an effect is selected the
filtered picture is written alongside it as a .bmp. Photos go to the SD card
when one is mounted, otherwise to /saves (the CPSAVES drive).
Controls, from a USB keyboard on the other host port (or the serial console):
right / left arrow -> next / previous effect
up arrow -> show the plain picture (no effect), keeping the
place in the list
down arrow -> back to the effect at that place in the list
1-9, 0 -> shortcuts to every other effect: 1 is the first
effect, 2 the third, ... 0 the nineteenth
space or enter -> take a photo
R -> remount CPSAVES so the computer sees the new photos
The Fruit Jam's own buttons work without a keyboard: button 1 and button 2
step down and up the list of effects, and button 3 takes a photo.
"""
import binascii
import gc
import os
import struct
import sys
import time
import bitmapfilter
import bitmaptools
import board
import displayio
import jpegio
import keypad
import picodvi
import picogame
import storage
import supervisor
import terminalio
from ulab import numpy as np
import adafruit_usb_host_camera
# pylint: disable=too-many-locals, global-statement
WIDTH, HEIGHT = 320, 240
LABEL_HEIGHT = 14
LABEL_SECONDS = 2
KEY_UP = "\x1b[A"
KEY_DOWN = "\x1b[B"
KEY_RIGHT = "\x1b[C"
KEY_LEFT = "\x1b[D"
KEYS_SHUTTER = (" ", "\r", "\n")
# Number keys jump to every other effect: 1 -> effects[1], 2 -> effects[3], ...
# 0 comes after 9, like on the keyboard.
KEYS_NUMBER = "1234567890"
displayio.release_displays()
framebuffer = picodvi.Framebuffer(
WIDTH,
HEIGHT,
clk_dp=board.CKP,
clk_dn=board.CKN,
red_dp=board.D0P,
red_dn=board.D0N,
green_dp=board.D1P,
green_dn=board.D1N,
blue_dp=board.D2P,
blue_dn=board.D2N,
color_depth=16,
)
# jpegio decodes into `bitmap`, the effects change it in place, and picogame
# draws that same memory straight into the DVI scanout buffer.
bitmap = displayio.Bitmap(WIDTH, HEIGHT, 65535)
sprite = picogame.Sprite(picogame.Bitmap(bitmap, WIDTH, HEIGHT), x=0, y=0)
target = picogame.Framebuffer(framebuffer, WIDTH, HEIGHT, native_rgb565=True)
WHITE = picogame.rgb565(255, 255, 255)
GREEN = picogame.rgb565(0, 221, 0)
RED = picogame.rgb565(255, 0, 0)
BLACK = picogame.rgb565(0, 0, 0)
CLEAR = picogame.rgb565(255, 0, 255) # stands for "transparent" in the label
# A strip along the bottom of the screen for the effect name and messages
label = picogame.Canvas(WIDTH, LABEL_HEIGHT, transparent=CLEAR)
label.move(0, HEIGHT - LABEL_HEIGHT)
label.clear(CLEAR)
label_until = 0
picture_layers = [sprite] # the color grids swap in their four panels
def refresh():
layers = picture_layers
if time.monotonic() < label_until:
layers = layers + [label]
picogame.render(target, layers, None, 0, 0, WIDTH, HEIGHT)
def display_message(text, color=WHITE, seconds=LABEL_SECONDS):
"""Show ``text`` over the bottom of the picture for a while."""
global label_until # noqa: PLW0603
label.clear(CLEAR)
label.text(4, 1, " %s " % text, color, terminalio.FONT, BLACK)
label_until = time.monotonic() + seconds
refresh()
# --- Effects -----------------------------------------------------------------
# These are the adafruit_pycamera.imageprocessing effects. That package needs
# the PyCamera's hardware to import, so the ones used here are repeated.
greyscale_weights = bitmapfilter.ChannelMixer(
0.299, 0.587, 0.114,
0.299, 0.587, 0.114,
0.299, 0.587, 0.114,
) # fmt: skip
inverse_greyscale_weights = bitmapfilter.ChannelMixer(
1 - 0.299, 1 - 0.587, 1 - 0.114,
1 - 0.299, 1 - 0.587, 1 - 0.114,
1 - 0.299, 1 - 0.587, 1 - 0.114,
) # fmt: skip
sepia_weights = bitmapfilter.ChannelMixer(
0.393, 0.769, 0.189,
0.349, 0.686, 0.168,
0.272, 0.534, 0.131,
) # fmt: skip
negative_weights = bitmapfilter.ChannelScaleOffset(-1, 1, -1, 1, -1, 1)
red_weights = bitmapfilter.ChannelScale(1, 0.5, 0.5)
green_weights = bitmapfilter.ChannelScale(0.5, 1, 0.5)
blue_weights = bitmapfilter.ChannelScale(0.5, 0.5, 1)
bright_weights = bitmapfilter.ChannelScale(2.0, 2.0, 2.0)
low_contrast_weights = bitmapfilter.ChannelScaleOffset(0.5, 0.5, 0.5, 0.5, 0.5, 0.5)
swap_rb_weights = bitmapfilter.ChannelMixer(0, 0, 1, 0, 1, 0, 1, 0, 0)
swap_bg_weights = bitmapfilter.ChannelMixer(1, 0, 0, 0, 0, 1, 0, 1, 0)
swap_rg_weights = bitmapfilter.ChannelMixer(0, 1, 0, 1, 0, 0, 0, 0, 1)
blur_weights = (1, 2, 1, 2, 4, 2, 1, 2, 1)
sharpen_weights = (-1, -2, -1, -2, 13, -2, -1, -2, -1)
emboss_weights = (-2, -1, 0, -1, 0, 1, 0, 1, 2)
blur_more = [
4, 15, 24, 15, 4,
15, 61, 97, 61, 15,
24, 97, 154, 97, 24,
15, 61, 97, 61, 15,
4, 15, 24, 15, 4,
] # fmt: skip
# The 'ironbow' false color palette, three bytes (R, G, B) per entry
_IRONBOW = binascii.unhexlify(
"fffffffffffffffefff7fef7f7fdf7f7fdf7f7fcf7effcefefffefefffefeffaefe7fae7"
"e7fde7e7fde7e7f8e7def8dedeffdedeffdedefeded6fed6d6f5d6d6f5d6d6f4d6cef4ce"
"ceffceceffcecefacec6fac6c6f5c6c6f5c6c6f0c6bdf0bdbdbfbdbdbfbdbdbebdb5beb5"
"b5bdb5b5bdb5b5bcb5b5bcb5adafadadafadadaaadadaaada5ada5a5ada5a5a8a5a5a8a5"
"9cbf9c9cbf9c9cbe9c9cbe9c94b59494b59494b49494b4948caf8c8caf8c8caa8c8caa8c"
"84a58484a58484a08484a0847b7f7b7b7f7b7b7e7b7b7e7b737d73737d73737c73737c73"
"6b7f6b6b7f6b6b7a6b6b7a6b637d63637d636378636378635a5f5a5a5f5a5a5e5a5a5e5a"
"5255525255525254525254524a5f4a4a5f4a4a5a4a4a5a4a4a554a425542425042425042"
"423f42393f39393e39393e39393d39313d31313c31313c31312f31292f29292a29292a29"
"292d29212d21212821212821211f21181f18181e18181e18181518101510101410101410"
"100f10080f08080a08080a08080508000500000000000000000008000010000018080021"
"08002908002908003110003910004210004a18005218005a18006318006b21006b210073"
"21007b29007b31007b31007b39007b39007b42007b4a007b4a00845200845200845a0084"
"6300846300846b00846b008473008c7b008c7b008c84008c84058c8c058c94058c94058c"
"9c058c9c058ca5058ca5058cad058cb5058cb50a8cbd0a8cbd0a8cbd0f84c6147bc6157b"
"c61573c61e6bce1f6bce2863ce2863ce2d5ad62a52d62f52d62f4ade3c42de3d42de3e39"
"de3e31de3f31de5029e75529e75a29e75a21e75f21e75421e75521e75e18e75f18e75f18"
"ef7810ef7d10ef7a10ef7f08ef7c08ef7d08ef7d08ef7e08ef7f08efa008efa508f7aa08"
"f7af10f7b410f7b510f7be10f7bf10f7a810f7a810f7ad10f7aa10f7af10f7bc10f7bd10"
"f7be10f7bf10f7bf10fff018fff518fffa18ffff18fff418fff518fffe18fffe21ffff21"
"fff829fffd31fffd42fffa52fffa63fffa6bffff7bffff8cfffc94fffca5fffdb5fffdbd"
"fffecefffedeffffefffff18"
)
ironbow_palette = displayio.Palette(256)
for _i in range(256):
ironbow_palette[_i] = tuple(_IRONBOW[3 * _i : 3 * _i + 3])
del _IRONBOW
def color_dodge_func(a, b):
return a / (1 - b) if b != 1 else 1
color_dodge = bitmapfilter.blend_precompute(color_dodge_func)
# Scratch copy of the frame for "sketch"
aux = displayio.Bitmap(WIDTH, HEIGHT, 65535)
def sketch(b):
bitmapfilter.mix(b, inverse_greyscale_weights)
memoryview(aux)[:] = memoryview(b)
bitmapfilter.morph(aux, blur_more)
bitmapfilter.blend(b, aux, b, color_dodge)
bitmapfilter.mix(b, inverse_greyscale_weights)
# --- Color grids -------------------------------------------------------------
# The frame is decoded at half size and shown four times, each panel gets
# painted with its own colors.
GRID_WIDTH, GRID_HEIGHT = WIDTH // 2, HEIGHT // 2
GRID_QUANTILES = (18, 46, 76) # where the bands split, in percent of the pixels
GRID_SOFT = 64 # 0 paints flat bands .. 255 blends each fully into the next
GRID_EDGE_SLACK = 4 # keep the palettes until a band edge moves this far
GRID_SETS = (
(
(0x1B0A1E, 0xE6007E, 0xFFD400, 0x22C1C3),
(0x06131F, 0x0057FF, 0x00E5A0, 0xFFF35C),
(0x1F0606, 0xFF2E00, 0xFF9E00, 0xFFE9C4),
(0x0D0518, 0x6A00F4, 0xE040FB, 0xB8FF5C),
),
(
(0x14100C, 0xC8102E, 0xF5F0E1, 0xE8C547),
(0x0C1014, 0x1D3F8F, 0xF5F0E1, 0xE8C547),
(0x0C1410, 0x2E8B57, 0xF5F0E1, 0xE8C547),
(0x140C14, 0x6B2D5C, 0xF5F0E1, 0xE8C547),
),
(
(0x0A1A0A, 0xFF2D95, 0xFFE14D, 0x1F6B3A),
(0x0A1A0A, 0xFF6A00, 0xFFF2B0, 0x1F6B3A),
(0x0A1A0A, 0x00B3FF, 0xD6FAFF, 0x1F6B3A),
(0x0A1A0A, 0xB026FF, 0xFFD6FF, 0x1F6B3A),
),
(
(0x06131F, 0x0057FF, 0x00E5A0, 0xFFF35C),
(0x1A0016, 0xFF0080, 0x00FFF0, 0xFFFFFF),
(0x001A0E, 0x00FF6A, 0x003CFF, 0xFFFB00),
(0x120014, 0xFF4D00, 0xFF00C8, 0x8CFFFF),
),
(
(0x0A0A0A, 0x3D3D3D, 0x8A8A8A, 0xF0F0F0),
(0x0A1018, 0x2A4A6A, 0x6A9AC0, 0xE8F4FF),
(0x180A0A, 0x6A2A2A, 0xC08A6A, 0xFFF0E0),
(0x0A180F, 0x2A6A3D, 0x8AC0A0, 0xE8FFF0),
),
)
grid_source = displayio.Bitmap(GRID_WIDTH, GRID_HEIGHT, 65535)
grid_pixels = np.frombuffer(grid_source, dtype=np.uint8)
grid_panels = []
grid_palettes = []
grid_layers = []
for _i in range(4):
_panel = displayio.Bitmap(GRID_WIDTH, GRID_HEIGHT, 65535)
grid_panels.append(_panel)
grid_palettes.append(displayio.Palette(256))
grid_layers.append(
picogame.Sprite(
picogame.Bitmap(_panel, GRID_WIDTH, GRID_HEIGHT),
x=(_i % 2) * GRID_WIDTH,
y=(_i // 2) * GRID_HEIGHT,
)
)
grid_edges = None # the band edges the palettes were built for
grid_loaded = None # and the palette set
def grid_band_edges():
"""Brightness (0-255) at each of GRID_QUANTILES, from a sample of the
pixels of grid_source."""
step = 2 * 13 # every 13th pixel; each is two bytes, RRRRRGGG GGGBBBBB
high = grid_pixels[0::step]
low = grid_pixels[1::step]
red = high // 8
green_low = low // 32
green = (high - red * 8) * 8 + green_low
blue = low - green_low * 32
luma = np.sort(red * (8 * 0.299) + green * (4 * 0.587) + blue * (8 * 0.114))
return [0] + [int(luma[len(luma) * q // 100]) for q in GRID_QUANTILES] + [256]
def grid_build_palette(palette, colors, edges):
"""Spread a panel's four colors over the brightness bands."""
for level in range(4):
a = colors[level]
b = colors[min(level + 1, 3)]
ar, ag, ab = a >> 16, (a >> 8) & 0xFF, a & 0xFF
dr, dg, db = (b >> 16) - ar, ((b >> 8) & 0xFF) - ag, (b & 0xFF) - ab
low, high = edges[level], edges[level + 1]
for y in range(low, high):
# how far through the band, softened toward the flat color
t = (y - low) * GRID_SOFT // (high - low)
palette[y] = (
(ar + (dr * t >> 8)) << 16
| (ag + (dg * t >> 8)) << 8
| (ab + (db * t >> 8))
)
def color_grid(set_index):
"""Make the effect that paints grid_source into the four panels."""
def effect(_):
global grid_edges, grid_loaded # noqa: PLW0603
edges = grid_band_edges()
# Building the palettes is the slow part, so keep them while the
# picture's brightness holds steady.
if grid_loaded != set_index or any(
abs(new - old) >= GRID_EDGE_SLACK for new, old in zip(edges, grid_edges)
):
for palette, colors in zip(grid_palettes, GRID_SETS[set_index]):
grid_build_palette(palette, colors, edges)
grid_edges = edges
grid_loaded = set_index
source = memoryview(grid_source)
for panel, palette in zip(grid_panels, grid_palettes):
memoryview(panel)[:] = source
bitmapfilter.false_color(panel, palette)
return effect
# The swap grid's panels: plain, then each pair of color channels traded
SWAP_GRID_WEIGHTS = (None, swap_rb_weights, swap_bg_weights, swap_rg_weights)
def swap_grid(_):
"""Paint grid_source into the four panels, the top left one as it is and
the others with two of their color channels swapped."""
source = memoryview(grid_source)
for panel, weights in zip(grid_panels, SWAP_GRID_WEIGHTS):
memoryview(panel)[:] = source
if weights is not None:
bitmapfilter.mix(panel, weights)
def grid_to_bitmap():
"""Copy the four panels into the full size bitmap, to save as a photo."""
for i, panel in enumerate(grid_panels):
bitmaptools.blit(bitmap, panel, (i % 2) * GRID_WIDTH, (i // 2) * GRID_HEIGHT)
effects = [
("none", lambda b: None),
("greyscale", lambda b: bitmapfilter.mix(b, greyscale_weights)),
("negative", lambda b: bitmapfilter.mix(b, negative_weights)),
("sepia", lambda b: bitmapfilter.mix(b, sepia_weights)),
("red cast", lambda b: bitmapfilter.mix(b, red_weights)),
("green cast", lambda b: bitmapfilter.mix(b, green_weights)),
("blue cast", lambda b: bitmapfilter.mix(b, blue_weights)),
("solarize", bitmapfilter.solarize),
("ironbow", lambda b: bitmapfilter.false_color(b, ironbow_palette)),
("blur", lambda b: bitmapfilter.morph(b, blur_weights)),
("sharpen", lambda b: bitmapfilter.morph(b, sharpen_weights)),
("emboss", lambda b: bitmapfilter.morph(b, emboss_weights, add=0.5)),
("bright", lambda b: bitmapfilter.mix(b, bright_weights)),
("low contrast", lambda b: bitmapfilter.mix(b, low_contrast_weights)),
("swap r/b", lambda b: bitmapfilter.mix(b, swap_rb_weights)),
("sketch", sketch),
]
FIRST_GRID = len(effects)
for _i in range(len(GRID_SETS)):
effects.append(("color grid %d" % (_i + 1), color_grid(_i)))
effects.append(("swap grid", swap_grid))
effect_index = 0
# Up arrow sets this to show the plain picture without losing effect_index
bypass = False
def active_effect():
"""The index into ``effects`` of what is on screen."""
return 0 if bypass else effect_index
# --- Saving photos -----------------------------------------------------------
def photo_directory():
try:
storage.getmount("/sd")
return "/sd"
except OSError:
return "/saves"
def next_photo_number(directory):
number = 0
for name in os.listdir(directory):
if name.startswith("img") and name[3:7].isdigit():
number = max(number, int(name[3:7]))
return number + 1
def save_bmp(path, source):
"""Write an RGB565_SWAPPED bitmap as a 24 bit .bmp file."""
_width, _height = source.width, source.height
row_size = (_width * 3 + 3) & ~3
# Build the file in memory and write it at once: many small writes to the
# flash drive are several times slower.
data = bytearray(54 + row_size * _height)
data[0:2] = b"BM"
struct.pack_into("<IHHI", data, 2, len(data), 0, 0, 54)
struct.pack_into(
"<IiiHHIIiiII", data, 14, 40, _width, _height, 1, 24, 0, 0, 0, 0, 0, 0
)
out = np.frombuffer(data, dtype=np.uint8)
pixels = np.frombuffer(source, dtype=np.uint8)
for y in range(_height):
row = pixels[y * _width * 2 : (y + 1) * _width * 2]
high = row[0::2] # RRRRRGGG
low = row[1::2] # GGGBBBBB
red = high // 8
green_low = low // 32
start = 54 + (_height - 1 - y) * row_size # .bmp rows run bottom to top
stop = start + _width * 3
out[start:stop:3] = (low - green_low * 32) * 8
out[start + 1 : stop : 3] = (high - red * 8) * 32 + green_low * 4
out[start + 2 : stop : 3] = red * 8
with open(path, "wb") as f:
f.write(data)
def take_photo(_camera, _mode, _frame):
"""Save ``frame`` (the JPEG on screen) and, with an effect selected, the
filtered picture that was made from it."""
_active = active_effect()
effect_name = effects[_active][0]
try:
directory = photo_directory()
base = "%s/img%04d" % (directory, next_photo_number(directory))
display_message("snap", GREEN)
_camera.save_jpeg(base + ".jpg", _frame)
print("Saved", base + ".jpg")
if effect_name != "none":
display_message("saving " + effect_name, GREEN)
path = "%s_%s.bmp" % (base, effect_name.replace(" ", "_").replace("/", ""))
if _active >= FIRST_GRID:
grid_to_bitmap()
# Writing the .bmp takes a few seconds, far longer than the camera's
# stream can be buffered for, so pause it meanwhile.
_camera.stop()
try:
t0 = time.monotonic()
save_bmp(path, bitmap)
print("Saved %s in %.1fs" % (path, time.monotonic() - t0))
finally:
_camera.start(_mode)
display_message("saved " + base, GREEN)
except OSError as exception:
# Read-only or full drive. /saves only holds about 2 MB.
print("Save failed:", exception)
display_message("Save failed: %s" % exception, RED)
gc.collect()
def remount_saves():
"""Remount /saves. The computer only reads the CPSAVES drive when it mounts
it, so photos saved since then stay hidden until the drive comes back."""
display_message("Remounting CPSAVES", GREEN)
try:
storage.remount("/saves", readonly=False)
print("Remounted CPSAVES")
display_message("Remounted CPSAVES", GREEN)
except (OSError, RuntimeError) as exception:
print("Remount failed:", exception)
display_message("Remount failed: %s" % exception, RED)
# --- Keyboard and buttons ----------------------------------------------------
def read_keys():
"""Return the keys typed since the last call. A USB keyboard plugged into
the Fruit Jam types into sys.stdin, the same as the serial console does.
Arrow keys arrive as three character escape sequences."""
available = supervisor.runtime.serial_bytes_available
if not available:
return []
data = sys.stdin.read(available)
keys = []
i = 0
while i < len(data):
if data[i] == "\x1b" and data[i + 1 : i + 2] == "[" and i + 2 < len(data):
keys.append(data[i : i + 3])
i += 3
else:
keys.append(data[i])
i += 1
return keys
# The board's own buttons stand in for three of the keys
try:
buttons = keypad.Keys(
(board.BUTTON1, board.BUTTON2, board.BUTTON3),
value_when_pressed=False,
pull=True,
)
except ValueError:
# Something else holds the button pins: imported over the top of another
# program (its objects survive Ctrl-C). Run with the keyboard only.
buttons = None
print("Board buttons are in use by another program; keyboard only.")
BUTTON_KEYS = (KEY_LEFT, KEY_RIGHT, KEYS_SHUTTER[0])
def read_buttons():
"""Return the keys the board's buttons stand for, for each button pressed
since the last call."""
keys = []
while buttons is not None:
event = buttons.events.get()
if event is None:
break
if event.pressed:
keys.append(BUTTON_KEYS[event.key_number])
return keys
# --- Main --------------------------------------------------------------------
camera = None
while camera is None:
try:
# Finds the camera among the attached devices; the keyboard is one too
camera = adafruit_usb_host_camera.UVCCamera()
except ValueError:
print("Plug a USB camera into a USB host port")
display_message("Plug in a USB camera", RED)
time.sleep(1)
mode = camera.find_mode(WIDTH, HEIGHT)
decoder = jpegio.JpegDecoder()
print("Filtered camera ready:", mode)
print("Arrow keys choose the effect, space takes a photo, R remounts CPSAVES.")
print("Board buttons: 1/2 choose the effect, 3 takes a photo.")
camera.start(mode)
display_message("arrows: effect space: photo R: remount", seconds=4)
try:
while True:
try:
frame = camera.capture()
except RuntimeError:
continue # no complete frame in time; keep trying
width, height = decoder.open(camera.add_huffman_tables(frame))
# The color grids show the picture four times at half size
active = active_effect()
grid = active >= FIRST_GRID
destination = grid_source if grid else bitmap
# Shrink larger pictures to fit: each scale step halves the size.
scale = 0
while (width >> scale) > destination.width or (
height >> scale
) > destination.height:
scale += 1
try:
decoder.decode(destination, scale=scale)
except (RuntimeError, ValueError):
continue # damaged frame
effects[active][1](destination)
picture_layers = grid_layers if grid else [sprite]
refresh()
for key in read_keys() + read_buttons():
if key == KEY_RIGHT:
effect_index = (effect_index + 1) % len(effects)
bypass = False
elif key == KEY_LEFT:
effect_index = (effect_index - 1) % len(effects)
bypass = False
elif key == KEY_UP:
bypass = True
elif key == KEY_DOWN:
bypass = False
elif key in KEYS_NUMBER:
effect_index = min(2 * KEYS_NUMBER.index(key) + 1, len(effects) - 1)
bypass = False
elif key in KEYS_SHUTTER:
take_photo(camera, mode, frame)
break
elif key in {"r", "R"}:
remount_saves()
if active_effect() != active:
print("Filter:", effects[active_effect()][0])
display_message(effects[active_effect()][0])
finally:
camera.stop()
Drive Structure
After copying the files, your drive should look like the listing below. It can contain other files as well, but must contain these at a minimum.
Page last edited September 28, 2026
Text editor powered by tinymce.
