CircuitPython Usage
To use the game, you need to add the game program files to the CIRCUITPY drive. The game consists of a handful of Python files and bitmaps.
Thankfully, installing everything be done in one go. In the code block below, click the Download Project Bundle button to download the necessary libraries and game files in a zip file.
Connect your board to your computer via a known good data+power USB cable. The board should show up in your File Explorer/Finder (depending on your operating system) as a flash drive named CIRCUITPY.
Extract the contents of the zip file, copy the lib directory files to CIRCUITPY/lib. Copy the entire contents of the appropriate CircuitPython folder to your CIRCUITPY drive. The program should self start.
# SPDX-FileCopyrightText: 2025 Melissa LeBlanc-Williams for Adafruit Industries
# SPDX-License-Identifier: MIT
"""
An implementation of a match3 jewel swap game. The idea is to move one character at a time
to line up at least 3 characters.
"""
import time
from displayio import Group, OnDiskBitmap, TileGrid, Bitmap, Palette
from adafruit_display_text.bitmap_label import Label
from adafruit_display_text.text_box import TextBox
from eventbutton import EventButton
import supervisor
import terminalio
from adafruit_usb_host_mouse import find_and_init_boot_mouse
from gamelogic import GameLogic, SELECTOR_SPRITE, EMPTY_SPRITE, GAMEBOARD_POSITION
GAMEBOARD_SIZE = (8, 7)
HINT_TIMEOUT = 10 # seconds before hint is shown
GAME_PIECES = 7 # Number of different game pieces (set between 3 and 8)
# pylint: disable=ungrouped-imports
if hasattr(supervisor.runtime, "display") and supervisor.runtime.display is not None:
# use the built-in HSTX display for Metro RP2350
display = supervisor.runtime.display
else:
# pylint: disable=ungrouped-imports
from displayio import release_displays
import picodvi
import board
import framebufferio
# initialize display
release_displays()
fb = picodvi.Framebuffer(
320,
240,
clk_dp=board.CKP,
clk_dn=board.CKN,
red_dp=board.D0P,
red_dn=board.D0N,
green_dp=board.D1P,
green_dn=board.D1N,
blue_dp=board.D2P,
blue_dn=board.D2N,
color_depth=16,
)
display = framebufferio.FramebufferDisplay(fb)
def get_color_index(color, shader=None):
for index, palette_color in enumerate(shader):
if palette_color == color:
return index
return None
# Load the spritesheet
sprite_sheet = OnDiskBitmap("/bitmaps/game_sprites.bmp")
sprite_sheet.pixel_shader.make_transparent(
get_color_index(0x00ff00, sprite_sheet.pixel_shader)
)
# Main group will hold all the visual layers
main_group = Group()
display.root_group = main_group
# Add Background to the Main Group
background = Bitmap(display.width, display.height, 1)
bg_color = Palette(1)
bg_color[0] = 0x333333
main_group.append(TileGrid(
background,
pixel_shader=bg_color
))
# Add Game grid, which holds the game board, to the main group
game_grid = TileGrid(
sprite_sheet,
pixel_shader=sprite_sheet.pixel_shader,
width=GAMEBOARD_SIZE[0],
height=GAMEBOARD_SIZE[1],
tile_width=32,
tile_height=32,
x=GAMEBOARD_POSITION[0],
y=GAMEBOARD_POSITION[1],
default_tile=EMPTY_SPRITE,
)
main_group.append(game_grid)
# Add a special selection groupd to highlight the selected piece and allow animation
selected_piece_group = Group()
selected_piece = TileGrid(
sprite_sheet,
pixel_shader=sprite_sheet.pixel_shader,
width=1,
height=1,
tile_width=32,
tile_height=32,
x=0,
y=0,
default_tile=EMPTY_SPRITE,
)
selected_piece_group.append(selected_piece)
selector = TileGrid(
sprite_sheet,
pixel_shader=sprite_sheet.pixel_shader,
width=1,
height=1,
tile_width=32,
tile_height=32,
x=0,
y=0,
default_tile=SELECTOR_SPRITE,
)
selected_piece_group.append(selector)
selected_piece_group.hidden = True
main_group.append(selected_piece_group)
# Add a group for the swap piece to help with animation
swap_piece = TileGrid(
sprite_sheet,
pixel_shader=sprite_sheet.pixel_shader,
width=1,
height=1,
tile_width=32,
tile_height=32,
x=0,
y=0,
default_tile=EMPTY_SPRITE,
)
swap_piece.hidden = True
main_group.append(swap_piece)
# Add foreground
foreground_bmp = OnDiskBitmap("/bitmaps/foreground.bmp")
foreground_bmp.pixel_shader.make_transparent(0)
foreground_tg = TileGrid(foreground_bmp, pixel_shader=foreground_bmp.pixel_shader)
foreground_tg.x = 0
foreground_tg.y = 0
main_group.append(foreground_tg)
# Add a group for the UI Elements
ui_group = Group()
main_group.append(ui_group)
# Create the mouse graphics and add to the main group
time.sleep(1) # Allow time for USB host to initialize
mouse = find_and_init_boot_mouse("/bitmaps/mouse_cursor.bmp")
if mouse is None:
raise RuntimeError("No mouse found connected to USB Host")
main_group.append(mouse.tilegrid)
# Create the game logic object
# pylint: disable=no-value-for-parameter, too-many-function-args
game_logic = GameLogic(
display,
mouse,
game_grid,
swap_piece,
selected_piece_group,
GAME_PIECES,
HINT_TIMEOUT
)
def update_ui():
# Update the UI elements with the current game state
score_label.text = f"Score:\n{game_logic.score}"
waiting_for_release = False
game_over_shown = False
# Create the UI Elements
# Label for the Score
score_label = Label(
terminalio.FONT,
color=0xffff00,
x=5,
y=10,
)
ui_group.append(score_label)
message_dialog = Group()
message_dialog.hidden = True
def reset():
global game_over_shown # pylint: disable=global-statement
# Reset the game logic
game_logic.reset()
message_dialog.hidden = True
game_over_shown = False
def hide_group(group):
group.hidden = True
reset()
reset_button = EventButton(
reset,
label="Reset",
width=40,
height=16,
x=5,
y=50,
style=EventButton.RECT,
)
ui_group.append(reset_button)
message_label = TextBox(
terminalio.FONT,
text="",
color=0x333333,
background_color=0xEEEEEE,
width=display.width // 3,
height=90,
align=TextBox.ALIGN_CENTER,
padding_top=5,
)
message_label.anchor_point = (0, 0)
message_label.anchored_position = (
display.width // 2 - message_label.width // 2,
display.height // 2 - message_label.height // 2,
)
message_dialog.append(message_label)
message_button = EventButton(
(hide_group, message_dialog),
label="OK",
width=40,
height=16,
x=display.width // 2 - 20,
y=display.height // 2 - message_label.height // 2 + 60,
style=EventButton.RECT,
)
message_dialog.append(message_button)
ui_group.append(message_dialog)
# main loop
while True:
update_ui()
# update mouse
game_logic.update_mouse()
if not message_dialog.hidden:
if message_button.handle_mouse(
(mouse.x, mouse.y),
game_logic.pressed_btns and "left" in game_logic.pressed_btns,
waiting_for_release
):
game_logic.waiting_for_release = True
continue
if reset_button.handle_mouse(
(mouse.x, mouse.y),
game_logic.pressed_btns is not None and "left" in game_logic.pressed_btns,
game_logic.waiting_for_release
):
game_logic.waiting_for_release = True
# process gameboard click if no menu
game_logic.update()
game_over = game_logic.check_for_game_over()
if game_over and not game_over_shown:
message_label.text = ("No more moves available. your final score is:\n"
+ str(game_logic.score))
message_dialog.hidden = False
game_over_shown = True
Display Size
Some versions of CircuitPython default to a higher resolution. To ensure the display gets automatically configured for the 320x240 resolution, which the Matching game is designed for, add a CIRCUITPY_DISPLAY_WIDTH variable with value 320 to the settings.toml file in the root directory of the CIRCUITPY drive. If you do not already have a settings.toml file, follow the instructions on this guide page to create one.
# This file is where you keep private settings, passwords, and tokens! # If you put them in the code you risk committing that info or sharing it CIRCUITPY_DISPLAY_WIDTH=320

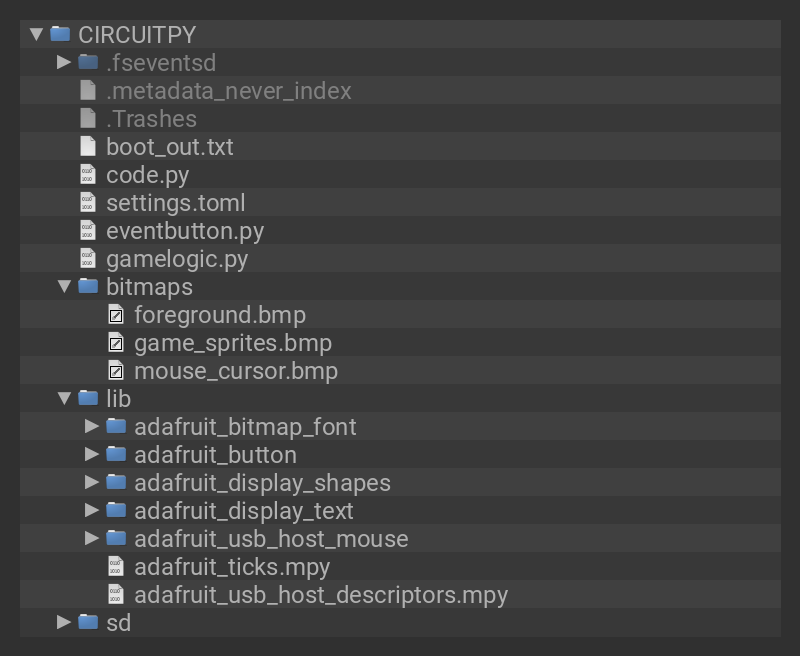

Drive Structure
After copying the files, your drive should look like the listing below. It can contain other files as well, but must contain these at a minimum.
