Code
Getting the Program's Files
To use the application, you need to obtain code.py with the program, and the other project files to place on the Fruit Jam CIRCUITPY drive.
Thankfully, this can be done in one go. In the example below, click the Download Project Bundle button below to download the necessary libraries, the code.py file, and other project files in a zip file.
Connect your board to your computer via a known good data+power USB cable. The board should show up in your File Explorer/Finder (depending on your operating system) as a flash drive named CIRCUITPY.
Extract the contents of the zip file, copy the lib directory files to CIRCUITPY/lib. Copy the code.py file, as well as the anna-magdealena-20a.mid file to your CIRCUITPY drive. The program should self start.
# SPDX-FileCopyrightText: Copyright (c) 2026 Tim Cocks for Adafruit Industries
#
# SPDX-License-Identifier: MIT
import time
import audiobusio
import audiocore
import audiodelays
import audiofilewriter
import audiofilters
import audioi2sin
import audiomixer
import board
from pwmio import PWMOut
import usb.core
import adafruit_midi
from adafruit_midi.note_off import NoteOff
from adafruit_midi.note_on import NoteOn
from adafruit_midi.control_change import ControlChange
import adafruit_midi_parser
import adafruit_tlv320
import adafruit_usb_host_midi
from neopixel import NeoPixel
OUTPUT_PATH = "/sd/sample0.wav"
SONG_PATH = "/anna-magdalena-20a.mid"
CC_RECORD = 77 # midi CC control value to initiate recording
CC_PLAY_SONG = 78 # midi CC control value to initiate playing a song
SONG_PLAYBACK_BPM = 135
# Default debounce window (seconds) for control change messages.
CC_DEBOUNCE_DEFAULT = 1.0
# Per-control overrides, keyed by CC number, for buttons that need a longer
# or shorter debounce window than the default.
CC_COOLDOWNS = {
CC_PLAY_SONG: 3.0,
}
# Tracks the last accepted time for each CC number so duplicates arriving
# within the debounce window can be ignored.
last_cc_time = {}
SAMPLE_RATE = 16000
STATE = "playing"
pixels = NeoPixel(board.NEOPIXEL, 5, brightness=0.1)
def cc_debounced(control):
"""Return True if this control change should be acted on.
Looks up (or falls back to the default) cooldown window for `control`,
compares against the last time this control was accepted, and - if
enough time has passed - records the new time and returns True. This
replaces having a separate `last_*` variable and cooldown check for
every individual CC button.
"""
now = time.monotonic()
cooldown = CC_COOLDOWNS.get(control, CC_DEBOUNCE_DEFAULT)
if now >= last_cc_time.get(control, 0) + cooldown:
last_cc_time[control] = now
return True
return False
# --- Set up USB Host Midi keyboard ---
print("Looking for midi device")
raw_midi = None
while raw_midi is None:
for device in usb.core.find(find_all=True):
try:
raw_midi = adafruit_usb_host_midi.MIDI(device, timeout=0.01)
print("Found midi device: ", hex(device.idVendor), hex(device.idProduct))
except ValueError:
continue
midi = adafruit_midi.MIDI(midi_in=raw_midi, in_channel=0)
# --- Set up DAC & 3.5mm output ---
mclk_pwm = PWMOut(board.I2S_MCLK, frequency=15_000_000, duty_cycle=2**15)
i2c = board.I2C()
dac = adafruit_tlv320.TLV320DAC3100(i2c)
dac.configure_clocks(sample_rate=44100, bit_depth=16, mclk_freq=15_000_000)
dac.headphone_output = True
dac.dac_volume = 0 # dB
dac.headphone_volume = -10
audio = audiobusio.I2SOut(board.I2S_BCLK, board.I2S_WS, board.I2S_DIN)
# --- Set up polyphony ---
# audiomixer with 4 voices to play up to 4 things at once
mixer = audiomixer.Mixer(
voice_count=4,
sample_rate=16000,
channel_count=1,
bits_per_sample=16,
samples_signed=True,
)
audio.play(mixer)
# --- Set up I2S Microphone ---
mic = audioi2sin.I2SIn(
bit_clock=board.D6,
word_select=board.D7,
data=board.D9,
sample_rate=SAMPLE_RATE,
bit_depth=32,
output_bit_depth=16,
mono=True,
left_justified=False, # True for SPH0645LM4H
)
actual_rate = mic.sample_rate
# --- General variables ---
effect_chains = []
samples = []
recording_file = None
# --- Set up samples ---
class DataContext:
def __init__(self):
self.data_start = None
self.pcm = None
self.cur_voice_index = 0
# Lazily created the first time CC 78 arrives.
self.song_player = None
data_context = DataContext()
def load_samples():
with open(OUTPUT_PATH, "rb") as f:
raw = f.read()
data_context.data_start = raw.find(b"data") + 8 # skip 'data' + length field
data_context.pcm = memoryview(raw)[data_context.data_start :].cast(
"h"
) # signed 16-bit view, matches the chain
samples.clear()
for _ in range(len(mixer.voice)):
# per voice, pre-allocate a RawSample
sample = audiocore.RawSample(
data_context.pcm, sample_rate=16000, channel_count=1
)
samples.append(sample)
try:
load_samples()
except OSError:
print("No sample file")
# --- Set up effects chains ---
# One chain instance per mixer voice
for i in range(len(mixer.voice)):
new_chain = []
# amp used for pre_gain only to boost volume
amp = audiofilters.Distortion(
pre_gain=23.6,
drive=0.0, # drive 0.0 for no distortion
mode=audiofilters.DistortionMode.LOFI,
soft_clip=True,
mix=1.0,
buffer_size=1024,
sample_rate=SAMPLE_RATE,
bits_per_sample=16,
samples_signed=True,
channel_count=1,
)
# pitch shifter to tune sample up or down
gran_pitch_shift = audiodelays.GranularPitchShift(
semitones=7.0,
mix=1.0,
grain_size=1024,
spread=0.125,
density=4,
buffer_size=1024,
channel_count=1,
sample_rate=16000,
)
# add both effects to the new chain
new_chain.append(amp)
new_chain.append(gran_pitch_shift)
# add the chain to the list of chains
effect_chains.append(new_chain)
# --- note and song playback handling ---
def trigger_note(note):
"""Play the current sample pitch-shifted to `note` on the next mixer voice.
Shared by the live keyboard and the MIDI-file song player so both behave
identically (semitones relative to middle C, round-robin voice stealing).
"""
effect_chain = effect_chains[data_context.cur_voice_index]
# set the pitch shift semi-tone for note
effect_chain[1].semitones = note - 60
# walk thru the chain and call play() on each effect
for chain_index in range(len(effect_chain)):
if chain_index == 0:
# 0 index effect calls play() on the sample
effect_chain[chain_index].play(samples[data_context.cur_voice_index])
else:
# all other effects call play() on the prior effect in the chain
effect_chain[chain_index].play(effect_chain[chain_index - 1])
# play the last link in the effect chain on the current mixer voice
mixer.voice[data_context.cur_voice_index].play(effect_chain[-1])
# increment current voice index for next time
data_context.cur_voice_index = (data_context.cur_voice_index + 1) % len(mixer.voice)
class SamplerMIDIPlayer(adafruit_midi_parser.MIDIPlayer):
"""Drives the sampler voices from a parsed MIDI file.
Each note-on re-triggers the sample pitch-shifted to that note, exactly like
pressing a key. Notes are one-shot RawSamples that ring out, so note-off is
a no-op, matching the live keyboard's behavior.
"""
# pylint: disable=unused-argument, no-self-use
# `self`, `velocity`, and `channel` are required by the parent interface
# even though they are unused by this subclass implementation.
def on_note_on(self, note, velocity, channel):
trigger_note(note)
def start_song():
"""Parse (once) and (re)start playback of SONG_PATH."""
if data_context.song_player is None:
try:
parser = adafruit_midi_parser.MIDIParser()
parser.parse(SONG_PATH)
parser.bpm = SONG_PLAYBACK_BPM
print(
f"Parsed {SONG_PATH}: {len(parser.events)} events, "
+ f"{parser.note_count} notes, {parser.bpm:.1f} BPM"
)
data_context.song_player = SamplerMIDIPlayer(parser)
except adafruit_midi_parser.MIDIParseError as e:
print("Could not load song:", e)
return False
else:
# Rewind so a fresh CC_PLAY_SONG restarts from the top.
data_context.song_player.stop()
data_context.song_player.parser.reset()
return True
# --- main loop ---
while True:
# Advance MIDI-file playback (non-blocking) while a song is active.
if STATE == "song" and data_context.song_player is not None:
data_context.song_player.play()
if data_context.song_player.finished:
STATE = "playing"
pixels[0] = 0x000000
try:
msg = midi.receive()
except usb.core.USBError as usbe:
print("Ignoring USB error", usbe)
# if keyboard note was pressed
if isinstance(msg, NoteOn) and msg.velocity != 0:
# if we're in live play state
if STATE == "playing":
print(
"noteOn: ", msg.note, "vel:", msg.velocity, data_context.cur_voice_index
)
trigger_note(msg.note)
# if we're waiting to start recording
elif STATE == "recording_prompt":
# turn pixel red and begin recording
pixels[0] = 0xFF0000
STATE = "recording"
# cannot use `with` because file must remain open beyond this context
recording_file = open(OUTPUT_PATH, "wb")
writer = audiofilewriter.AudioFileWriter(recording_file)
writer.play(mic)
# if keyboard note was released
elif isinstance(msg, NoteOff) or (isinstance(msg, NoteOn) and msg.velocity == 0):
# only care about note release if we're recording
if STATE == "recording":
# stop the recording and load the new sample
print("noteOff:", msg.note, "vel:", msg.velocity)
print("ending recording")
writer.stop()
recording_file.close()
load_samples()
# turn pixel off and change state to live play
pixels[0] = 0x000000
STATE = "playing"
# if control change button was pressed
elif isinstance(msg, ControlChange):
if not cc_debounced(msg.control):
# duplicate event from the keyboard within the cooldown window;
# ignore it
pass
# prompt to start recording
elif msg.control == CC_RECORD:
print("recording prompt")
STATE = "recording_prompt"
pixels[0] = 0xFFFF00
# start playing midi song
elif msg.control == CC_PLAY_SONG:
print("play song")
if start_song():
pixels[0] = 0x00FF00
STATE = "song"
else:
print(msg)
# print unknown event messages
elif msg is not None:
print(msg)

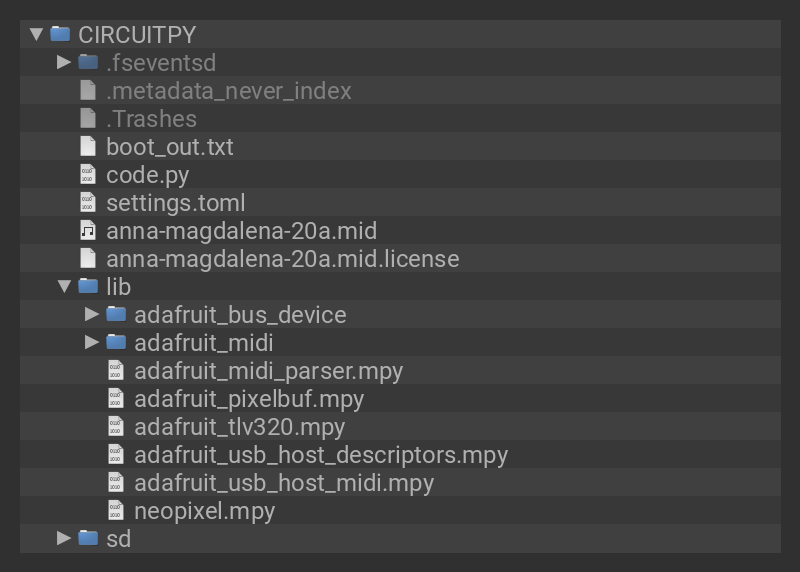

Drive Structure
After copying the files, your drive should look like the listing below. It can contain other files as well, but must contain these at a minimum.
