Code the Horns
You can access the code and necessary libraries by downloading the Project Bundle.
To do this, click on the Download Project Bundle button in the window below. It will download to your computer as a zipped folder.
# SPDX-FileCopyrightText: 2026 Erin St Blaine for Adafruit Industries
#
# SPDX-License-Identifier: MIT
# Motion-Reactive Devil Horns
# Quiet ember pulse at rest
# Fast traveling flare on sharp movement
# Progressive demon charge on head tilt
#
# Adafruit RP2040 Prop-Maker Feather
#
# Pixel 0 = horn base
# Last pixel = horn tip
import math
import random
import time
import adafruit_lis3dh
import board
import digitalio
import neopixel
# ---------------------------------------------------------------------------
# CONFIGURATION
# ---------------------------------------------------------------------------
PIXEL_COUNT = 21
BRIGHTNESS = 0.9
FRAME_DELAY = 0.02
# Ember pulse timing.
EMBER_PULSE_SPEED = 1.4
# Small random flickers near the base.
EMBER_FLICKER_CHANCE = 8
EMBER_FLICKER_DECAY = 0.88
# Sharp movement required to trigger the traveling flare.
FLARE_TRIGGER = 6.0
FLARE_COOLDOWN = 0.9
# Traveling flare behavior.
FLARE_STEP_TIME = 0.02
FLARE_WIDTH = 5
# Head tilt behavior.
#
# X axis is near 0 when your head is level.
# Tilt begins affecting the horns around this value.
TILT_TRIGGER = 3.0
# Around this X reading, the horn is fully charged.
TILT_FULL = 5.0
# Lower = slower/smoother response.
# Higher = faster response.
TILT_SMOOTHING = 0.10
# ---------------------------------------------------------------------------
# POWER AND NEOPIXEL SETUP
# ---------------------------------------------------------------------------
external_power = digitalio.DigitalInOut(board.EXTERNAL_POWER)
external_power.direction = digitalio.Direction.OUTPUT
external_power.value = True
pixels = neopixel.NeoPixel(
board.EXTERNAL_NEOPIXELS,
PIXEL_COUNT,
brightness=BRIGHTNESS,
auto_write=False,
pixel_order=neopixel.GRB,
)
# ---------------------------------------------------------------------------
# ACCELEROMETER SETUP
# ---------------------------------------------------------------------------
i2c = board.I2C()
accelerometer = adafruit_lis3dh.LIS3DH_I2C(i2c)
accelerometer.range = adafruit_lis3dh.RANGE_4_G
previous_x, previous_y, previous_z = accelerometer.acceleration
tilt_level = 0.0
last_flare_time = -FLARE_COOLDOWN
# ---------------------------------------------------------------------------
# EMBER STATE
# ---------------------------------------------------------------------------
ember_flicker = [0.0] * PIXEL_COUNT
# ---------------------------------------------------------------------------
# FLARE STATE
# ---------------------------------------------------------------------------
flare_active = False
flare_position = 0.0
last_flare_step = time.monotonic()
# ---------------------------------------------------------------------------
# COLOR HELPERS
# ---------------------------------------------------------------------------
def scale_color(color, amount):
"""Scale an RGB color by a brightness amount."""
amount = max(0.0, min(1.0, amount))
return tuple(
min(255, int(channel * amount))
for channel in color
)
def blend_colors(base_color, overlay_color, amount):
"""Blend two RGB colors."""
amount = max(0.0, min(1.0, amount))
return tuple(
int(base + (overlay - base) * amount)
for base, overlay in zip(base_color, overlay_color)
)
def ember_color(position, pulse_amount):
"""Return the resting ember color for one pixel."""
# Fade strongly from the horn base toward the tip.
position_fade = max(
0.0,
1.0 - position / (PIXEL_COUNT - 1)
)
# Concentrate most of the glow in the lower half.
position_fade = position_fade ** 1.8
# Gentle breathing glow.
brightness = (
0.10
+ pulse_amount * 0.18
) * position_fade
# Dark red with a trace of orange.
color = (255, 24, 3)
return scale_color(color, brightness)
def flare_color(strength):
"""Create the bright yellow-orange motion flare."""
strength = max(0.0, min(1.0, strength))
red = 255
green = int(100 + 155 * strength)
blue = int(8 + 120 * strength)
return (
red,
min(255, green),
min(135, blue),
)
def charge_color(strength):
"""Red-orange glow for the sustained head-tilt charge."""
strength = max(0.0, min(1.0, strength))
red = 255
green = int(30 + 90 * strength)
blue = int(2 + 12 * strength)
return (
red,
green,
blue,
)
# ---------------------------------------------------------------------------
# MOTION + TILT DETECTION
# ---------------------------------------------------------------------------
def read_motion_and_tilt():
"""Measure sharp motion and update the head-tilt level."""
# pylint: disable=global-statement
global previous_x, previous_y, previous_z
global tilt_level
x, y, z = accelerometer.acceleration
delta_x = x - previous_x
delta_y = y - previous_y
delta_z = z - previous_z
previous_x = x
previous_y = y
previous_z = z
acceleration_change = math.sqrt(
delta_x * delta_x
+ delta_y * delta_y
+ delta_z * delta_z
)
# Head tilt uses the X axis.
# abs() means left and right tilts behave identically.
tilt_amount = abs(x)
raw_tilt = (
tilt_amount - TILT_TRIGGER
) / (TILT_FULL - TILT_TRIGGER)
raw_tilt = max(0.0, min(1.0, raw_tilt))
# Smooth the charge so it grows and recedes rather than jittering.
tilt_level += (
raw_tilt - tilt_level
) * TILT_SMOOTHING
return acceleration_change
# ---------------------------------------------------------------------------
# EMBER ANIMATION
# ---------------------------------------------------------------------------
def update_embers():
"""Update small, irregular ember flickers."""
for index in range(PIXEL_COUNT):
ember_flicker[index] *= EMBER_FLICKER_DECAY
# Occasional subtle flare-ups near the horn base.
if random.random() < EMBER_FLICKER_CHANCE / 100.0:
flicker_pixel = random.randint(0, min(4, PIXEL_COUNT - 1))
ember_flicker[flicker_pixel] = random.uniform(0.15, 0.45)
# Let some flicker spill into the next pixel.
if flicker_pixel + 1 < PIXEL_COUNT:
ember_flicker[flicker_pixel + 1] = max(
ember_flicker[flicker_pixel + 1],
ember_flicker[flicker_pixel] * 0.45,
)
# ---------------------------------------------------------------------------
# TRAVELING FLARE
# ---------------------------------------------------------------------------
def start_traveling_flare():
"""Start a bright flare at the horn base."""
# pylint: disable=global-statement
global flare_active
global flare_position
global last_flare_step
flare_active = True
flare_position = -2.0
last_flare_step = time.monotonic()
def update_traveling_flare():
"""Move the flare toward the horn tip."""
# pylint: disable=global-statement
global flare_active
global flare_position
global last_flare_step
if not flare_active:
return
current_time = time.monotonic()
elapsed_steps = int(
(current_time - last_flare_step) / FLARE_STEP_TIME
)
if elapsed_steps > 0:
flare_position += elapsed_steps
last_flare_step += elapsed_steps * FLARE_STEP_TIME
# End after the flare tail has fully moved past the tip.
if flare_position - FLARE_WIDTH > PIXEL_COUNT - 1:
flare_active = False
def flare_amount_for_pixel(index):
"""Return flare brightness for a particular pixel."""
if not flare_active:
return 0.0
distance = flare_position - index
if distance < 0 or distance > FLARE_WIDTH:
return 0.0
normalized = 1.0 - distance / FLARE_WIDTH
# Keeps the flare front broad and bright.
return normalized ** 0.45
# ---------------------------------------------------------------------------
# HEAD-TILT CHARGE
# ---------------------------------------------------------------------------
def charge_amount_for_pixel(index):
"""Return how strongly the tilt effect affects this pixel."""
if tilt_level <= 0.0:
return 0.0
# As tilt increases, the glow climbs farther toward the horn tip.
fill_position = tilt_level * (PIXEL_COUNT + 1)
distance = fill_position - index
if distance <= 0:
return 0.0
# Pixels comfortably below the fill line get the full tilt strength.
if distance >= 2.0:
return tilt_level
# Soft leading edge.
return tilt_level * (distance / 2.0)
# ---------------------------------------------------------------------------
# DISPLAY
# ---------------------------------------------------------------------------
def draw_pixels():
"""Draw ember pulse, tilt charge, and motion flare."""
current_time = time.monotonic()
# Slow breathing pulse.
pulse_wave = (
math.sin(current_time * EMBER_PULSE_SPEED) + 1.0
) / 2.0
# Keep the pulse gentle rather than fading completely out.
pulse_amount = 0.25 + pulse_wave * 0.75
for index in range(PIXEL_COUNT):
base_color = ember_color(
index,
pulse_amount,
)
# Add small independent flickers.
if ember_flicker[index] > 0:
flicker_color = scale_color(
(255, 48, 4),
ember_flicker[index],
)
base_color = tuple(
min(
255,
base_color[channel] + flicker_color[channel],
)
for channel in range(3)
)
# ---------------------------------------------------------------
# HEAD-TILT CHARGE
# ---------------------------------------------------------------
charge_amount = charge_amount_for_pixel(index)
if charge_amount > 0:
charge_overlay = charge_color(charge_amount)
base_color = blend_colors(
base_color,
charge_overlay,
0.20 + charge_amount * 0.70,
)
# ---------------------------------------------------------------
# TRAVELING FLARE
# ---------------------------------------------------------------
flare_amount = flare_amount_for_pixel(index)
if flare_amount > 0:
overlay = flare_color(flare_amount)
overlay_amount = (
0.72 + flare_amount * 0.28
)
final_color = blend_colors(
base_color,
overlay,
overlay_amount,
)
else:
final_color = base_color
pixels[index] = final_color
pixels.show()
# ---------------------------------------------------------------------------
# MAIN LOOP
# ---------------------------------------------------------------------------
try:
while True:
motion_change = read_motion_and_tilt()
now = time.monotonic()
if (
motion_change >= FLARE_TRIGGER
and now - last_flare_time >= FLARE_COOLDOWN
):
start_traveling_flare()
last_flare_time = now
update_embers()
update_traveling_flare()
draw_pixels()
time.sleep(FRAME_DELAY)
finally:
pixels.fill((0, 0, 0))
pixels.show()
external_power.value = False
Upload the Code and Libraries to the RP2040 Prop-Maker Feather
After downloading the Project Bundle, plug your RP2040 Prop-Maker Feather into the computer's USB port with a known good USB data+power cable. You should see a new flash drive appear in the computer's File Explorer or Finder (depending on your operating system) called CIRCUITPY. Unzip the folder and copy the following items to the RP2040 PropMaker Feather's CIRCUITPY drive.
- lib folder
- code.py

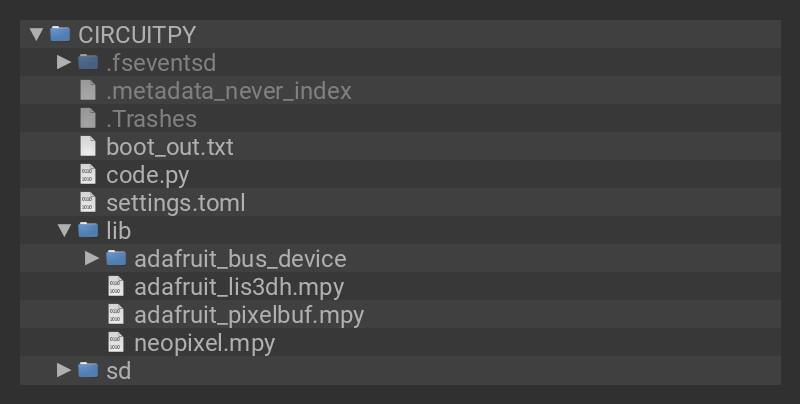

Your RP2040 PropMaker Feather CIRCUITPY drive should look like this after copying the lib folder, and the code.py file.
The code gives the horns three different behaviors. At rest, they glow with a slow, smoldering ember pulse. A sharp head shake sends a bright flare racing from the base of the horns toward the tips. Tilt your head to either side and the horns gradually “charge up,” glowing brighter and farther toward the tips the farther you lean. The two gesture effects can overlap with the ember animation, which keeps the horns feeling alive all the time.
Configuration
The main settings are gathered together near the top of the code so you can easily customize the look and responsiveness of the horns.
PIXEL_COUNT = 21 BRIGHTNESS = 0.9 FRAME_DELAY = 0.02
PIXEL_COUNT should match the number of NeoPixels in your horn strand. In this build, there are 21 pixels, with pixel 0 at the base of the horn and the last pixel at the tip.
BRIGHTNESS sets the maximum overall brightness. Use a number between 0.0 and 1.0.
FRAME_DELAY controls how often the animation updates. Lower numbers update more quickly.
Accelerometer Setup
The PropMaker Feather's onboard LIS3DH accelerometer is what makes the horns gesture-reactive.
i2c = board.I2C() accelerometer = adafruit_lis3dh.LIS3DH_I2C(i2c) accelerometer.range = adafruit_lis3dh.RANGE_4_G
The code uses the sensor in two different ways.
For the shake gesture, it looks at how much the X, Y, and Z acceleration readings have changed since the previous frame.
For the head tilt, it watches the X-axis directly. Since the Feather is mounted with the USB port pointing forward on top of the head, the X-axis changes strongly when you tilt your head from side to side.
If you've oriented your board differently (i.e. anything other than right on top of the head with the USB port facing forward) you will need to adjust the code to read from a different axis in order to make that animation work.
Resting Ember Pulse
When you're holding still, the horns glow like banked coals instead of simply sitting at one solid color.
EMBER_PULSE_SPEED = 1.4 EMBER_FLICKER_CHANCE = 8 EMBER_FLICKER_DECAY = 0.88
EMBER_PULSE_SPEED controls the speed of the slow breathing effect.
EMBER_FLICKER_CHANCE controls how often a small random flicker appears near the base of the horn. Raise this number for more activity.
EMBER_FLICKER_DECAY controls how quickly those individual flickers disappear. A value closer to 1.0 makes them linger longer.
The base ember color is created in ember_color(). If you'd like to change the color, the numbers are red, green, blue with values from 0 to 255.
color = (255, 24, 3)
Shake Gesture
The shake effect is based on change in acceleration, rather than the absolute orientation of the board.
Every frame, the code compares the current accelerometer readings with the previous readings.
A sharp head shake causes this value to jump.
The most useful adjustment for this gesture is:
FLARE_TRIGGER 6.0
A higher number makes it less sensitive, a lower number more sensitive.
There is also a cooldown:
FLARE_COOLDOWN = 0.9
This prevents one vigorous movement from repeatedly restarting the animation. Make this number higher if you're getting too many re-triggers.
Head-Tilt Gesture
The second gesture works differently. Instead of looking for sudden motion, it measures how far the head is tilted. You can tilt in either direction.
TILT_TRIGGER determines how far you need to tilt before the charge begins.
TILT_FULL determines the tilt reading at which the horn reaches its full charge.
Progressive Horn Charge
The amount of tilt also determines how far up the horn the glow travels.
fill_position = tilt_level * (PIXEL_COUNT + 1)
At a small tilt, only the pixels near the base are affected. As the tilt increases, the fill position moves closer to the tip.
Layering the Effects
The real trick in this code is that these aren't three completely separate animations. They are drawn in layers.
Inside draw_pixels(), each pixel begins with the resting ember color.
base_color = ember_color(
index,
pulse_amount,
)The random ember flicker is added next.
Then the head-tilt charge is blended over the ember:
base_color = blend_colors(
base_color,
charge_overlay,
0.20 + charge_amount * 0.70,
)Finally, if a traveling flare is passing through that pixel, the bright flare is blended on top.
final_color = blend_colors(
base_color,
overlay,
overlay_amount,
)This layering means the underlying ember animation never really stops. The tilt and shake effects simply build on top of it.
You can even tilt your head while triggering a flare, and both gestures will contribute to the final color.
Page last edited August 12, 2026
Text editor powered by tinymce.
