This project has been updated to use the US Navy Moon Phase API. Previously, it used the FarmSense API, which is now defunct.
Once you've finished setting up your QT Py ESP32-S2 with CircuitPython, you can access the code and necessary libraries by downloading the Project Bundle.
To do this, click on the Download Project Bundle button in the window below. It will download to your computer as a zipped folder.
# SPDX-FileCopyrightText: 2025 Liz Clark for Adafruit Industries
# SPDX-License-Identifier: MIT
import os
import time
import ssl
import board
import wifi
import socketpool
import microcontroller
import neopixel
import adafruit_requests
from adafruit_ticks import ticks_ms, ticks_add, ticks_diff
# US Navy Astronomical Applications API for moon phase
# https://aa.usno.navy.mil/api
# Your location coordinates (adjust these to your location)
LATITUDE = 40.71
LONGITUDE = -74.0060
TIMEZONE = -5 # EST/EDT, adjust for your timezone
DST = True # Set to False if not in daylight saving time
# Adafruit IO time server for current date, no API key needed
date_url = "https://io.adafruit.com/api/v2/time/ISO-8601"
# connect to wifi
try:
wifi.radio.connect(os.getenv('CIRCUITPY_WIFI_SSID'), os.getenv('CIRCUITPY_WIFI_PASSWORD'))
except TypeError:
print("Could not find WiFi info. Check your settings.toml file!")
raise
pool = socketpool.SocketPool(wifi.radio)
requests = adafruit_requests.Session(pool, ssl.create_default_context())
# neopixels, 49 total
OFF = (0, 0, 0)
ON = (255, 255, 255)
RED = (255,0,0)
pixel_pin = board.A3
num_pixels = 49
pixels = neopixel.NeoPixel(pixel_pin, num_pixels, brightness=0.1, auto_write=False)
pixels.fill(0)
# phases of the moon
NEW_MOON = 0
WAXING_CRESCENT = 1
FIRST_QUARTER = 2
WAXING_GIBBOUS = 3
FULL_MOON = 4
WANING_GIBBOUS = 5
LAST_QUARTER = 6
WANING_CRESCENT = 7
DARK_MOON = 8
RED_MOON = 9
# strings that match return from API
phase_names = ["New Moon", "Waxing Crescent", "First Quarter", "Waxing Gibbous",
"Full Moon", "Waning Gibbous", "Last Quarter", "Waning Crescent","Dark Moon","Red Moon"]
# functions for each moon phase to light up based on neopixel orientation
def set_new_moon():
pixels.fill(OFF)
pixels.show()
def set_waxing_crescent():
pixels.fill(OFF)
for i in range(31, 44):
pixels[i] = ON
pixels.show()
def set_first_quarter():
pixels.fill(OFF)
for i in range(24, 49):
pixels[i] = ON
pixels.show()
def set_waxing_gibbous():
pixels.fill(OFF)
for i in range(0, 4):
pixels[i] = ON
for i in range(18, 49):
pixels[i] = ON
pixels.show()
def set_full_moon():
pixels.fill(ON)
pixels.show()
def set_waning_gibbous():
pixels.fill(OFF)
for i in range(0, 30):
pixels[i] = ON
for i in range(44, 49):
pixels[i] = ON
pixels.show()
def set_last_quarter():
pixels.fill(OFF)
for i in range(0, 24):
pixels[i] = ON
pixels.show()
def set_waning_crescent():
pixels.fill(OFF)
for i in range(5, 18):
pixels[i] = ON
pixels.show()
def set_dark_moon():
pixels.fill(OFF)
for i in range(9,14):
pixels[i] = ON
pixels.show()
def set_red_moon():
pixels.fill(RED)
pixels.show()
# match functions with phases
phase_functions = {
NEW_MOON: set_new_moon,
WAXING_CRESCENT: set_waxing_crescent,
FIRST_QUARTER: set_first_quarter,
WAXING_GIBBOUS: set_waxing_gibbous,
FULL_MOON: set_full_moon,
WANING_GIBBOUS: set_waning_gibbous,
LAST_QUARTER: set_last_quarter,
WANING_CRESCENT: set_waning_crescent,
DARK_MOON: set_dark_moon,
RED_MOON: set_red_moon
}
# test function, runs through all 8 in order
def demo_all_phases(delay=1):
for phase in range(9):
print(f"Setting phase: {phase_names[phase]}")
phase_functions[phase]()
time.sleep(delay)
demo_all_phases()
# takes response from API, matches to function, runs function
def set_moon_phase(phase):
phase_lower = phase.lower()
error_check = 0
for i, name in enumerate(phase_names):
if phase_lower == name.lower():
error_check = 1
phase_functions[i]()
print(f"Moon phase set to: {name}")
if error_check == 0:
print("ERROR")
set_red_moon() #error indicator if API responce is unexpected
# time keeping, fetches API every 6 hours
timer_clock = ticks_ms()
timer = (6 * 3600) * 1000
first_run = True
while True:
try:
if first_run or ticks_diff(ticks_ms(), timer_clock) >= timer:
# get current date
date_response = requests.get(date_url)
iso_date = date_response.text.strip('"')
current_date = iso_date.split('T')[0]
date_response.close()
# build Navy API URL with parameters
# pylint: disable=line-too-long
url = f"https://aa.usno.navy.mil/api/rstt/oneday?date={current_date}&coords={LATITUDE},{LONGITUDE}&tz={TIMEZONE}"
if DST:
url += "&dst=true"
# get the JSON response
response = requests.get(url)
json_response = response.json()
# isolate phase info
current_phase = json_response["properties"]["data"]["curphase"]
print("-" * 40)
print(current_phase)
print("-" * 40)
# run function to update neopixels with current phase
set_moon_phase(current_phase)
response.close()
time.sleep(1)
first_run = False
# reset clock
timer_clock = ticks_add(timer_clock, timer)
# pylint: disable=broad-except
except Exception as e:
print("Error:\n", str(e))
print("Resetting microcontroller in 10 seconds")
time.sleep(10)
microcontroller.reset()
Upload the Code and Libraries to the QT Py
After downloading the Project Bundle, plug your QT Py into the computer's USB port with a known good USB data+power cable. You should see a new flash drive appear in the computer's File Explorer or Finder (depending on your operating system) called CIRCUITPY. Unzip the folder and copy the following items to the QT Py's CIRCUITPY drive.
- lib folder
- code.py

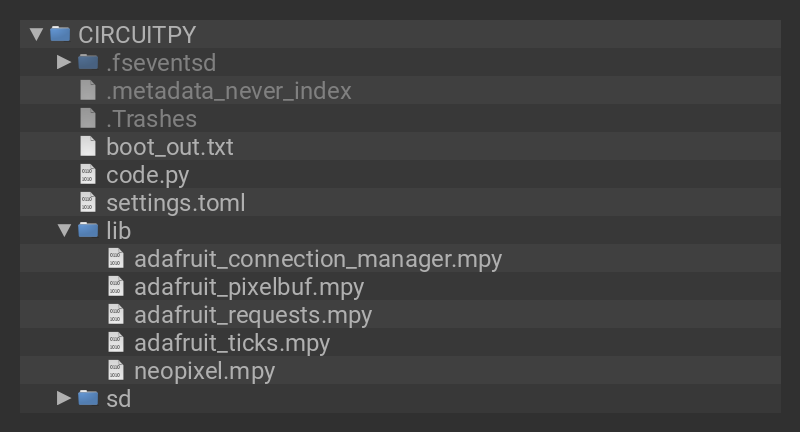

Your QT Py ESP32-S2 CIRCUITPY drive should look like this after copying the lib folder and the code.py file.
Add Your settings.toml File
As of CircuitPython 8.0.0, there is support for Environment Variables. Environment variables are stored in a settings.toml file. Similar to secrets.py, the settings.toml file separates your sensitive information from your main code.py file. Add your settings.toml file as described in the Create Your settings.toml File page earlier in this guide. You'll need to include your CIRCUITPY_WIFI_SSID and CIRCUITPY_WIFI_PASSWORD. Adafruit IO credentials and other data are not needed for this project.
CIRCUITPY_WIFI_SSID = "your-ssid-here" CIRCUITPY_WIFI_PASSWORD = "your-ssid-password-here"
How the Code Works
The moon phase information is fetched from the US Navy Moon Phase API. It is a free API that gives the phase of the moon based on the date passed to it. You'll use the Adafruit IO time API to fetch the ISO timestamp. You do not need to include your Adafruit IO key to use this API.
The API also takes your latitude, longitude and timezone as a part of the API request because it provides more detailed moon phase information, such as sunset, moonrise, etc. If you're using this project as-is and only need to know the current phase of the moon, then you don't need to update any of this information.
# US Navy Astronomical Applications API for moon phase
# https://aa.usno.navy.mil/api
# Your location coordinates (adjust these to your location)
LATITUDE = 40.71
LONGITUDE = -74.0060
TIMEZONE = -5 # EST/EDT, adjust for your timezone
DST = True # Set to False if not in daylight saving time
# Adafruit IO time server for current date, no API key needed
date_url = "https://io.adafruit.com/api/v2/time/ISO-8601"
# connect to wifi
try:
wifi.radio.connect(os.getenv('CIRCUITPY_WIFI_SSID'), os.getenv('CIRCUITPY_WIFI_PASSWORD'))
except TypeError:
print("Could not find WiFi info. Check your settings.toml file!")
raise
pool = socketpool.SocketPool(wifi.radio)
requests = adafruit_requests.Session(pool, ssl.create_default_context())
NeoPixels
The NeoPixels are setup on pin A3. Two colors are defined: OFF (all pixels off) and ON (white). To start, the NeoPixels are turned off to reset any pixels.
# neopixels, 49 total OFF = (0, 0, 0) ON = (255, 255, 255) pixel_pin = board.A3 num_pixels = 49 pixels = neopixel.NeoPixel(pixel_pin, num_pixels, brightness=0.1, auto_write=False) pixels.fill(0)
Phases of the Moon
The phases of the moon are returned as strings from the API. The list phase_names is created to store these strings. Variables for the phases are also created.
# phases of the moon
NEW_MOON = 0
WAXING_CRESCENT = 1
FIRST_QUARTER = 2
WAXING_GIBBOUS = 3
FULL_MOON = 4
WANING_GIBBOUS = 5
LAST_QUARTER = 6
WANING_CRESCENT = 7
DARK_MOON = 8
RED_MOON = 9
# strings that match return from API
phase_names = ["New Moon", "Waxing Crescent", "First Quarter", "Waxing Gibbous",
"Full Moon", "Waning Gibbous", "Last Quarter", "Waning Crescent","Dark Moon","Red Moon"]
Each phase has a function that turns the necessary NeoPixels on or off to display the phase. For example, set_new_moon() turns all of the pixels off. set_third_quarter() sets half of the pixels on.
def set_new_moon():
pixels.fill(OFF)
pixels.show()
...
def set_last_quarter():
pixels.fill(OFF)
for i in range(0, 24):
pixels[i] = ON
pixels.show()
These functions are matched to the phase and phase index with the phase_functions dictionary.
# match functions with phases
phase_functions = {
NEW_MOON: set_new_moon,
WAXING_CRESCENT: set_waxing_crescent,
FIRST_QUARTER: set_first_quarter,
WAXING_GIBBOUS: set_waxing_gibbous,
FULL_MOON: set_full_moon,
WANING_GIBBOUS: set_waning_gibbous,
LAST_QUARTER: set_last_quarter,
WANING_CRESCENT: set_waning_crescent,
DARK_MOON: set_dark_moon,
RED_MOON: set_red_moon
}
The set_moon_phase() function takes the current phase returned from the API and runs the matching NeoPixel function to set the NeoPixels.
# takes response from API, matches to function, runs function
def set_moon_phase(phase):
phase_lower = phase.lower()
for i, name in enumerate(phase_names):
if phase_lower == name.lower():
phase_functions[i]()
print(f"Moon phase set to: {name}")
The Loop
In the loop, ticks is used to keep time. Every 6 hours, the ISO timestamp is fetched from the Adafruit IO time API. The current date is retrieved from this response. This information is packed into the API request as an f-string. The API returns a JSON file, with the moon phase information located at json_response["properties"]["data"]["curphase"]. The current moon phase is passed to the set_moon_phase() function to update the NeoPixels.
while True:
try:
if first_run or ticks_diff(ticks_ms(), timer_clock) >= timer:
# get current date
date_response = requests.get(date_url)
iso_date = date_response.text.strip('"')
current_date = iso_date.split('T')[0]
date_response.close()
# build Navy API URL with parameters
url = f"https://aa.usno.navy.mil/api/rstt/oneday?date={current_date}&coords={LATITUDE},{LONGITUDE}&tz={TIMEZONE}"
if DST:
url += "&dst=true"
# get the JSON response
response = requests.get(url)
json_response = response.json()
# isolate phase info
current_phase = json_response["properties"]["data"]["curphase"]
print("-" * 40)
print(current_phase)
print("-" * 40)
# run function to update neopixels with current phase
set_moon_phase(current_phase)
response.close()
time.sleep(1)
first_run = False
# reset clock
timer_clock = ticks_add(timer_clock, timer)
