CircuitPython Usage
To use the game, you need to add theĀ game program files to theĀ CIRCUITPY drive. The game consists of a handful of Python files and bitmaps.
Thankfully, installing everything be done in one go. In the code block below, click the Download Project Bundle button to download the necessary libraries and game files in a zip file.
Connect your board to your computer via a known good data+power USB cable. The board should show up in your File Explorer/Finder (depending on your operating system) as a flash drive named CIRCUITPY.
Extract the contents of the zip file, copy the lib directory files to CIRCUITPY/lib. Copy the entire contents of the appropriate CircuitPython folder to your CIRCUITPY drive. The program should self start.

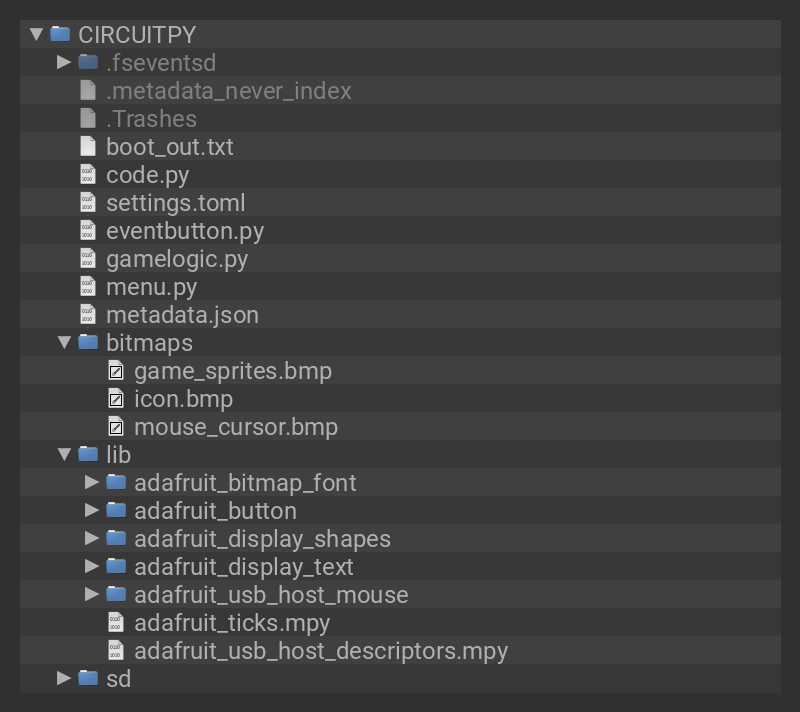

Drive Structure
After copying the files, your drive should look like the listing below. It can contain other files as well, but must contain these at a minimum.
# SPDX-FileCopyrightText: 2025 Melissa LeBlanc-Williams for Adafruit Industries
# SPDX-License-Identifier: MIT
"""
An implementation of minesweeper. The logic game where the player
correctly identifies the locations of mines on a grid by clicking on squares
and revealing the number of mines in adjacent squares.
The player can also flag squares they suspect contain mines. The game ends when
the player successfully reveals all squares without mines or clicks on a mine.
"""
import array
import time
from displayio import Group, OnDiskBitmap, TileGrid, Bitmap, Palette
from adafruit_display_text.bitmap_label import Label
from adafruit_display_text.text_box import TextBox
from eventbutton import EventButton
import supervisor
import terminalio
import usb.core
from gamelogic import GameLogic, BLANK, INFO_BAR_HEIGHT, DIFFICULTIES
from menu import Menu, SubMenu
# pylint: disable=ungrouped-imports
if hasattr(supervisor.runtime, "display") and supervisor.runtime.display is not None:
# use the built-in HSTX display for Metro RP2350
display = supervisor.runtime.display
else:
# pylint: disable=ungrouped-imports
from displayio import release_displays
import picodvi
import board
import framebufferio
# initialize display
release_displays()
fb = picodvi.Framebuffer(
320,
240,
clk_dp=board.CKP,
clk_dn=board.CKN,
red_dp=board.D0P,
red_dn=board.D0N,
green_dp=board.D1P,
green_dn=board.D1N,
blue_dp=board.D2P,
blue_dn=board.D2N,
color_depth=16,
)
display = framebufferio.FramebufferDisplay(fb)
game_logic = GameLogic(display) # pylint: disable=no-value-for-parameter
# Load the spritesheet
sprite_sheet = OnDiskBitmap("/bitmaps/game_sprites.bmp")
# Main group will hold all the visual layers
main_group = Group()
display.root_group = main_group
# Add Background to the Main Group
background = Bitmap(display.width, display.height, 1)
bg_color = Palette(1)
bg_color[0] = 0xaaaaaa
main_group.append(TileGrid(
background,
pixel_shader=bg_color
))
# Add Game group, which holds the game board, to the main group
game_group = Group()
main_group.append(game_group)
# Add a group for the UI Elements
ui_group = Group()
main_group.append(ui_group)
# Create the mouse graphics and add to the main group
mouse_bmp = OnDiskBitmap("/bitmaps/mouse_cursor.bmp")
mouse_bmp.pixel_shader.make_transparent(0)
mouse_tg = TileGrid(mouse_bmp, pixel_shader=mouse_bmp.pixel_shader)
mouse_tg.x = display.width // 2
mouse_tg.y = display.height // 2
main_group.append(mouse_tg)
MENU_ITEM_HEIGHT = INFO_BAR_HEIGHT
def create_game_board():
# Remove the old game board
if len(game_group) > 0:
game_group.pop()
x = display.width // 2 - (game_logic.grid_width * 16) // 2
y = ((display.height - INFO_BAR_HEIGHT) // 2 -
(game_logic.grid_height * 16) // 2 + INFO_BAR_HEIGHT)
# Create a new game board
game_board = TileGrid(
sprite_sheet,
pixel_shader=sprite_sheet.pixel_shader,
width=game_logic.grid_width,
height=game_logic.grid_height,
tile_height=16,
tile_width=16,
x=x,
y=y,
default_tile=BLANK,
)
game_group.append(game_board)
return game_board
def update_ui():
# Update the UI elements with the current game state
mines_left_label.text = f"Mines: {game_logic.mines_left}"
elapsed_time_label.text = f"Time: {game_logic.elapsed_time}"
# variable for the mouse USB device instance
mouse = None
# wait a second for USB devices to be ready
time.sleep(1)
# scan for connected USB devices
for device in usb.core.find(find_all=True):
# print information about the found devices
print(f"{device.idVendor:04x}:{device.idProduct:04x}")
print(device.manufacturer, device.product)
print(device.serial_number)
# assume this device is the mouse
mouse = device
# detach from kernel driver if active
if mouse.is_kernel_driver_active(0):
mouse.detach_kernel_driver(0)
# set the mouse configuration so it can be used
mouse.set_configuration()
buf = array.array("b", [0] * 4)
waiting_for_release = False
left_button = right_button = False
mouse_coords = (0, 0)
# Create the UI Elements (Ideally fit into 320x16 area)
# Label for the Mines Left (Left of Center)
mines_left_label = Label(
terminalio.FONT,
color=0x000000,
x=5,
y=0,
)
mines_left_label.anchor_point = (0, 0)
mines_left_label.anchored_position = (5, 2)
ui_group.append(mines_left_label)
# Label for the Elapsed Time (Right of Center)
elapsed_time_label = Label(
terminalio.FONT,
color=0x000000,
x=display.width - 50,
y=0,
)
elapsed_time_label.anchor_point = (1, 0)
elapsed_time_label.anchored_position = (display.width - 5, 2)
ui_group.append(elapsed_time_label)
# Menu button to change difficulty
difficulty_menu = SubMenu(
"Difficulty",
70,
80,
display.width // 2 - 70,
0
)
reset_menu = SubMenu(
"Reset",
50,
40,
display.width // 2 + 15,
0
)
message_dialog = Group()
message_dialog.hidden = True
def reset():
# Reset the game logic
game_logic.reset()
# Create a new game board and assign it into the game logic
game_logic.game_board = create_game_board()
message_dialog.hidden = True
def set_difficulty(diff):
game_logic.difficulty = diff
reset()
difficulty_menu.select_item(DIFFICULTIES[diff]['label'].lower().replace(" ", "_"))
def hide_group(group):
group.hidden = True
for i, difficulty in enumerate(DIFFICULTIES):
# Create a button for each difficulty
selected = i == game_logic.difficulty
difficulty_menu.add_item((set_difficulty, i), difficulty['label'], selected)
reset_menu.add_item(reset, "OK")
menu = Menu()
menu.append(difficulty_menu)
menu.append(reset_menu)
ui_group.append(menu)
reset()
message_label = TextBox(
terminalio.FONT,
text="",
color=0x333333,
background_color=0xEEEEEE,
width=display.width // 4,
height=50,
align=TextBox.ALIGN_CENTER,
padding_top=5,
)
message_label.anchor_point = (0, 0)
message_label.anchored_position = (
display.width // 2 - message_label.width // 2,
display.height // 2 - message_label.height // 2,
)
message_dialog.append(message_label)
message_button = EventButton(
(hide_group, message_dialog),
label="OK",
width=40,
height=16,
x=display.width // 2 - 20,
y=display.height // 2 - message_label.height // 2 + 20,
style=EventButton.RECT,
)
message_dialog.append(message_button)
ui_group.append(message_dialog)
# Popup message for game over/win
menus = (reset_menu, difficulty_menu)
# main loop
while True:
update_ui()
# attempt mouse read
try:
# try to read data from the mouse, small timeout so the code will move on
# quickly if there is no data
data_len = mouse.read(0x81, buf, timeout=10)
left_button = buf[0] & 0x01
right_button = buf[0] & 0x02
# if there was data, then update the mouse cursor on the display
# using min and max to keep it within the bounds of the display
mouse_tg.x = max(0, min(display.width - 1, mouse_tg.x + buf[1] // 2))
mouse_tg.y = max(0, min(display.height - 1, mouse_tg.y + buf[2] // 2))
mouse_coords = (mouse_tg.x, mouse_tg.y)
if waiting_for_release and not left_button and not right_button:
# If both buttons are released, we can process the next click
waiting_for_release = False
# timeout error is raised if no data was read within the allotted timeout
except usb.core.USBTimeoutError:
# no problem, just go on
pass
except AttributeError as exc:
raise RuntimeError("Mouse not found") from exc
if not message_dialog.hidden:
if message_button.handle_mouse(mouse_coords, left_button, waiting_for_release):
waiting_for_release = True
continue
if menu.handle_mouse(mouse_coords, left_button, waiting_for_release):
waiting_for_release = True
else:
# process gameboard click if no menu
ms_board = game_logic.game_board
if (ms_board.x <= mouse_tg.x <= ms_board.x + game_logic.grid_width * 16 and
ms_board.y <= mouse_tg.y <= ms_board.y + game_logic.grid_height * 16 and
not waiting_for_release):
coords = ((mouse_tg.x - ms_board.x) // 16, (mouse_tg.y - ms_board.y) // 16)
if right_button:
game_logic.square_flagged(coords)
elif left_button:
if not game_logic.square_clicked(coords):
message_label.text = "Game Over"
message_dialog.hidden = False
if left_button or right_button:
waiting_for_release = True
status = game_logic.check_for_win()
if status:
message_label.text = "You win!"
message_dialog.hidden = False
# Display message
if status is None:
continue
