Code Larsio Paint Music

Some of the functionality used here (USB Host for mouse in particular) is hot off the press. You'll want to install CircuitPython 10.0.0-alpha.5 or higher on your board rather than the 9.2.7 release version mentioned in the CircuitPython Install page.

Download the Project Bundle

Your project will use a specific set of CircuitPython libraries, sprite assets, sound assets, and .py files. To get everything you need, click on the Download Project Bundle link below, and uncompress the .zip file.

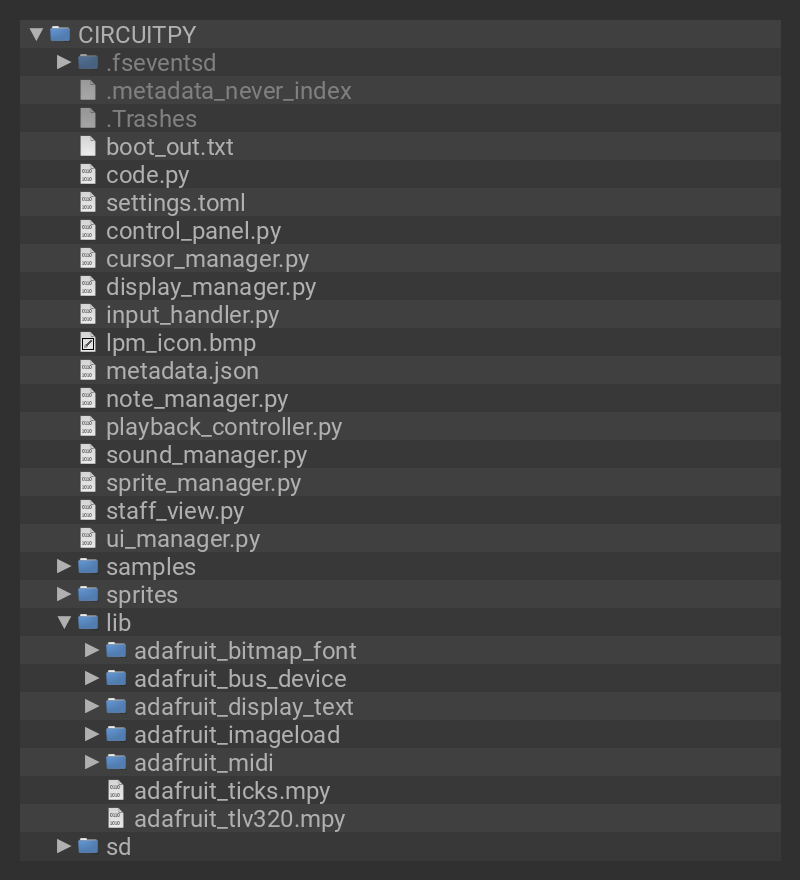

Drag the contents of the uncompressed bundle directory onto your board's CIRCUITPY drive, replacing any existing files or directories with the same names, and adding any new ones that are necessary.

Download Project Bundle

Copy Code

# SPDX-FileCopyrightText: 2025 John Park and Claude AI for Adafruit Industries
#
# SPDX-License-Identifier: MIT
"""
Larsio Paint Music
Fruit Jam w mouse, HDMI, audio out
or Metro RP2350 with EYESPI DVI breakout and TLV320DAC3100 breakout on STEMMA_I2C,
pin D7 reset, 9/10/11 = BCLC/WSEL/DIN
"""
# pylint: disable=invalid-name,too-few-public-methods,broad-except,redefined-outer-name

# Main application file for Larsio Paint Music

import time
import gc
from sound_manager import SoundManager
from note_manager import NoteManager
from ui_manager import UIManager

# Configuration
AUDIO_OUTPUT = "i2s"  # Options: "pwm" or "i2s"

class MusicStaffApp:
    """Main application class that ties everything together"""

    def __init__(self, audio_output="pwm"):
        # Initialize the sound manager with selected audio output
        # Calculate tempo parameters
        BPM = 120  # Beats per minute
        SECONDS_PER_BEAT = 60 / BPM
        SECONDS_PER_EIGHTH = SECONDS_PER_BEAT / 2

        # Initialize components in a specific order
        # First, force garbage collection to free memory
        gc.collect()

        # Initialize the sound manager
        print("Initializing sound manager...")
        self.sound_manager = SoundManager(
            audio_output=audio_output,
            seconds_per_eighth=SECONDS_PER_EIGHTH
        )

        # Give hardware time to stabilize
        time.sleep(0.5)
        gc.collect()

        # Initialize the note manager
        print("Initializing note manager...")
        self.note_manager = NoteManager(
            start_margin=25,  # START_MARGIN
            staff_y_start=int(240 * 0.1),  # STAFF_Y_START
            line_spacing=int((240 - int(240 * 0.1) - int(240 * 0.2)) * 0.95) // 8  # LINE_SPACING
        )

        gc.collect()

        # Initialize the UI manager
        print("Initializing UI manager...")
        self.ui_manager = UIManager(self.sound_manager, self.note_manager)

    def run(self):
        """Set up and run the application"""
        # Setup the display and UI
        print("Setting up display...")
        self.ui_manager.setup_display()

        # Give hardware time to stabilize
        time.sleep(0.5)
        gc.collect()

        # Try to find the mouse with multiple attempts
        MAX_ATTEMPTS = 5
        RETRY_DELAY = 1  # seconds

        mouse_found = False
        for attempt in range(MAX_ATTEMPTS):
            print(f"Mouse detection attempt {attempt+1}/{MAX_ATTEMPTS}")
            if self.ui_manager.find_mouse():
                mouse_found = True
                print("Mouse found successfully!")
                break

            print(f"Mouse detection attempt {attempt+1} failed, retrying...")
            time.sleep(RETRY_DELAY)

        if not mouse_found:
            print("WARNING: Mouse not found after multiple attempts.")
            print("The application will run, but mouse control may be limited.")

        # Enter the main loop
        self.ui_manager.main_loop()


# Create and run the application
if __name__ == "__main__":
    # Start with garbage collection
    gc.collect()
    print("Starting Music Staff Application...")

    try:
        app = MusicStaffApp(audio_output=AUDIO_OUTPUT)
        app.run()
    except Exception as e:  # pylint: disable=broad-except
        print(f"Error with I2S audio: {e}")

        # Force garbage collection
        gc.collect()
        time.sleep(1)

        # Fallback to PWM
        try:
            app = MusicStaffApp(audio_output="pwm")
            app.run()
        except Exception as e2:  # pylint: disable=broad-except
            print(f"Fatal error: {e2}")

# SPDX-FileCopyrightText: 2025 John Park and Claude AI for Adafruit Industries
#
# SPDX-License-Identifier: MIT
"""
Larsio Paint Music
Fruit Jam w mouse, HDMI, audio out
or Metro RP2350 with EYESPI DVI breakout and TLV320DAC3100 breakout on STEMMA_I2C,
pin D7 reset, 9/10/11 = BCLC/WSEL/DIN
"""
# pylint: disable=invalid-name,too-few-public-methods,broad-except,redefined-outer-name

# Main application file for Larsio Paint Music

import time
import gc
from sound_manager import SoundManager
from note_manager import NoteManager
from ui_manager import UIManager

# Configuration
AUDIO_OUTPUT = "i2s"  # Options: "pwm" or "i2s"

class MusicStaffApp:
    """Main application class that ties everything together"""

    def __init__(self, audio_output="pwm"):
        # Initialize the sound manager with selected audio output
        # Calculate tempo parameters
        BPM = 120  # Beats per minute
        SECONDS_PER_BEAT = 60 / BPM
        SECONDS_PER_EIGHTH = SECONDS_PER_BEAT / 2

        # Initialize components in a specific order
        # First, force garbage collection to free memory
        gc.collect()

        # Initialize the sound manager
        print("Initializing sound manager...")
        self.sound_manager = SoundManager(
            audio_output=audio_output,
            seconds_per_eighth=SECONDS_PER_EIGHTH
        )

        # Give hardware time to stabilize
        time.sleep(0.5)
        gc.collect()

        # Initialize the note manager
        print("Initializing note manager...")
        self.note_manager = NoteManager(
            start_margin=25,  # START_MARGIN
            staff_y_start=int(240 * 0.1),  # STAFF_Y_START
            line_spacing=int((240 - int(240 * 0.1) - int(240 * 0.2)) * 0.95) // 8  # LINE_SPACING
        )

        gc.collect()

        # Initialize the UI manager
        print("Initializing UI manager...")
        self.ui_manager = UIManager(self.sound_manager, self.note_manager)

    def run(self):
        """Set up and run the application"""
        # Setup the display and UI
        print("Setting up display...")
        self.ui_manager.setup_display()

        # Give hardware time to stabilize
        time.sleep(0.5)
        gc.collect()

        # Try to find the mouse with multiple attempts
        MAX_ATTEMPTS = 5
        RETRY_DELAY = 1  # seconds

        mouse_found = False
        for attempt in range(MAX_ATTEMPTS):
            print(f"Mouse detection attempt {attempt+1}/{MAX_ATTEMPTS}")
            if self.ui_manager.find_mouse():
                mouse_found = True
                print("Mouse found successfully!")
                break

            print(f"Mouse detection attempt {attempt+1} failed, retrying...")
            time.sleep(RETRY_DELAY)

        if not mouse_found:
            print("WARNING: Mouse not found after multiple attempts.")
            print("The application will run, but mouse control may be limited.")

        # Enter the main loop
        self.ui_manager.main_loop()


# Create and run the application
if __name__ == "__main__":
    # Start with garbage collection
    gc.collect()
    print("Starting Music Staff Application...")

    try:
        app = MusicStaffApp(audio_output=AUDIO_OUTPUT)
        app.run()
    except Exception as e:  # pylint: disable=broad-except
        print(f"Error with I2S audio: {e}")

        # Force garbage collection
        gc.collect()
        time.sleep(1)

        # Fallback to PWM
        try:
            app = MusicStaffApp(audio_output="pwm")
            app.run()
        except Exception as e2:  # pylint: disable=broad-except
            print(f"Fatal error: {e2}")

How It Works

To keep things manageable, Larsio Paint Music uses a modular design with each component handling a specific set of related tasks:

Module	Use
`code.py`	Main application entry point
`sound_manager.py`	Audio handling (WAV samples, and synthio)
`note_manager.py`	Manages note positions and properties
`ui_manager.py`	Coordinates UI elements and user interaction
`display_manager.py`	Configures and initializes the display
`staff_view.py`	Creates and manages the music staff visuals
`control_panel.py`	Handles buttons and controls
`input_handler.py`	Processes mouse input
`sprite_manager.py`	Loads and manages graphics assets
`cursor_manager.py`	Manages the mouse cursor
`playback_controller.py`	Controls playback and timing

Here's how these modules work.

Main Application (code.py)

This file runs when the board starts up and then it coordinates the other modules.

Sound Manager

The SoundManager handles all audio playback, including WAV samples, MIDI output, and synthesized sounds. It's one of the more complex parts of the application.

It also auto-detects which board is being used (Metro RP2350 or Fruit Jam) and configures the I2S pins appropriately.

Audio Mixer

The app uses an audio mixer with multiple voices, enabling simultaneous sounds.

Multi-Channel Sound

The program supports multiple instrument channels:

Channel 1 (Lars): Custom WAV samples of everyone's favorite sloth
Channel 2 (Heart): Bass
Channel 3 (Drums): Percussion sounds
Channels 4-6: Synthesizer voices with different waveforms

Note Manager

The NoteManager handles the positions of notes on the staff and their pitch values. It maintains a mapping of staff positions to MIDI note numbers.

When a note is added, the manager:

Finds the closest valid position
Creates a visual note at that position
Adds ledger lines if needed
Stores the note's data for playback

UI Manager and Display Manger

These coordinate all user interface elements and interactions, as well as displaying them to the screen.

Setting up the display
Creating the staff view
Handling the control panel
Processing user input
Managing the playback

Staff View

The StaffView class creates the musical staff display with proper music notation spacing. It draws the staff lines, measure bars, and quarter note dividers so you can more easily see the bar subdivisions.

Control Panel

The ControlPanel class handles all the UI controls for the application, including transport buttons and channel selectors.

Input Handling

The InputHandler processes mouse input for interacting with the application, including mouse position and interactions:

Left-click to add notes
Right-click to delete notes
Click on channel icons to switch instruments
Control playback with transport buttons
Adjust tempo

Sprite Manager

The SpriteManager loads and manages all graphical assets using BMP files:

Each instrument channel has its own unique sprite:

Channel 1: Lars
Channel 2: Heart (bass)
Channel 3: Drum
Channel 4: Meatball sprite for sine wave notes
Channel 5: star sprite for triangle wave notes
Channel 6: Adabot Head sprite for sawtooth wave notes

The sprite manager also handles preview notes shown during mouse hover, and handles button sprites for the transport controls.

Cursor Manager

The CursorManager handles the mouse cursor visuals, switching between different cursor styles based on context:

Crosshair Cursor: Used when over the staff for precise note placement
Triangle Cursor: Used when over buttons or controls

The offsets for each cursor ensure that the "hot spot" or active point of the cursor is properly aligned with the actual mouse position, making interaction more intuitive.

Playback Controller

The PlaybackController manages the playback of notes:

Moves a playhead across the staff
Triggers all notes at the current position
Handles looping when enabled
Stops playback when finished

Main Loop

The application's main loop continuously:

Updates the playback (if active)
Processes mouse input
Updates the cursor position
Handles button clicks

Memory Management

Throughout the code, you'll notice calls to gc.collect() - this is garbage collection to free up memory. CircuitPython has limited RAM, and audio/graphics can use a lot of it!
