Wire it up:

Make sure that the flat side of the transistor is facing the Metro.

Close-up of the relay wiring

Make sure the small square at the top of the DPDT Relay faces the top of the breadboard. Also, ensure the stripe on the diode faces the right side of the DPDT Relay.

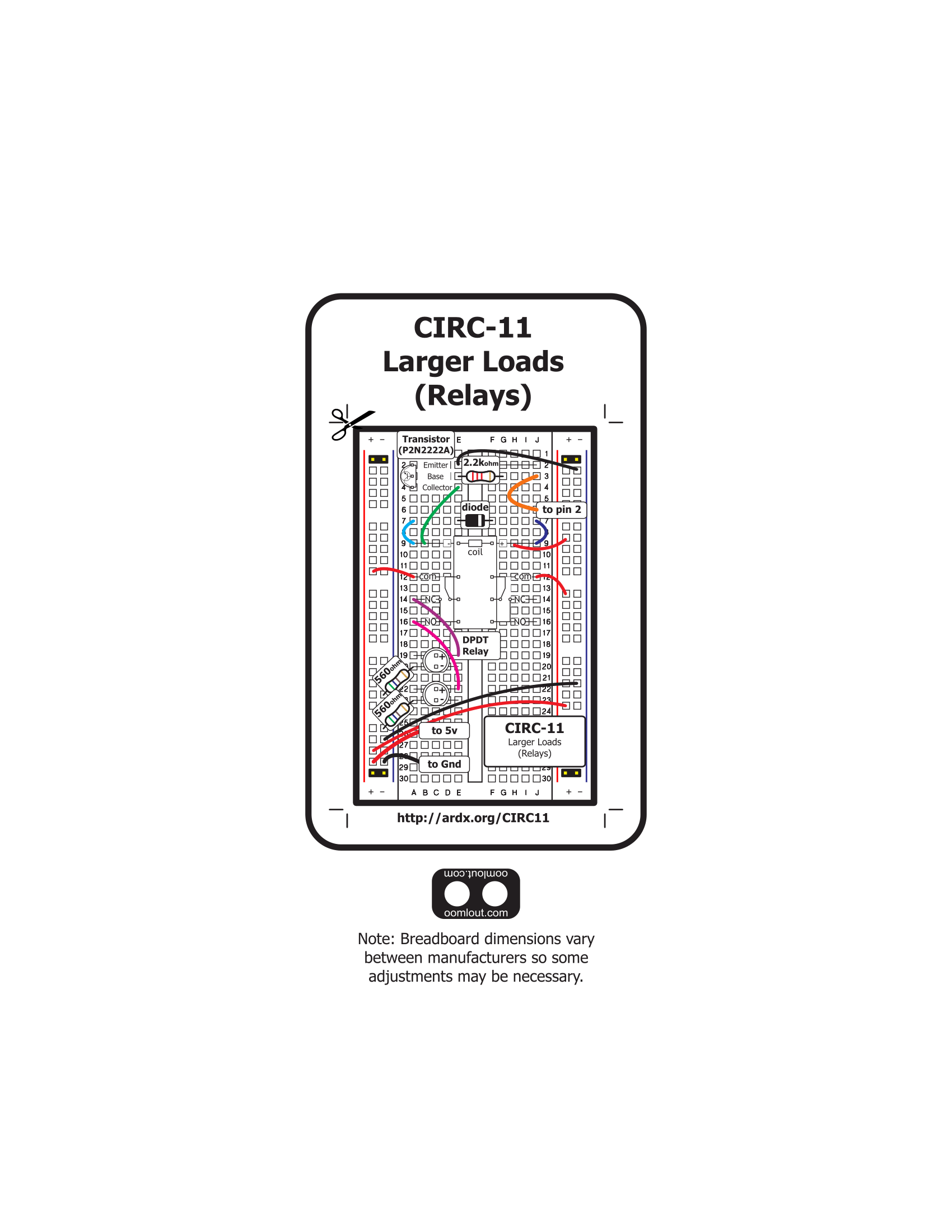

Printable Breadboard Layout Sheet
