Once you've finished setting up your Feather RP2040 USB Host with CircuitPython, you can access the code and necessary libraries by downloading the Project Bundle.
To do this, click on the Download Project Bundle button in the window below. It will download to your computer as a zipped folder.
# SPDX-FileCopyrightText: 2025 Liz Clark for Adafruit Industries
#
# SPDX-License-Identifier: MIT
"""
CircuitPython USB VID/PID Reporter
Feather RP2040 USB Host with OLED FeatherWing
"""
import usb.core
import keypad
import board
import displayio
import terminalio
from adafruit_display_text import label
from i2cdisplaybus import I2CDisplayBus
import adafruit_displayio_sh1107
displayio.release_displays()
# init display
i2c = board.I2C()
display_bus = I2CDisplayBus(i2c, device_address=0x3C)
display = adafruit_displayio_sh1107.SH1107(display_bus, width=128, height=64)
# text groups
main = displayio.Group()
extra_info = displayio.Group()
groups = [main, extra_info]
display.root_group = main
# text objects for title, VID and PID
title_text = label.Label(terminalio.FONT, text="USB VID/PID Reporter", color=0xFFFFFF, x=5, y=15)
main.append(title_text)
vid_text = label.Label(terminalio.FONT, text="VID:", color=0xFFFFFF, x=5, y=35)
main.append(vid_text)
pid_text = label.Label(terminalio.FONT, text="PID:", color=0xFFFFFF, x=5, y=50)
main.append(pid_text)
# text objects for manufacturer and product info
# added to secondary group
man_header = label.Label(terminalio.FONT, text="Manufacturer:", color=0xFFFFFF, x=5, y=10)
extra_info.append(man_header)
man_text = label.Label(terminalio.FONT, text=" ", color=0xFFFFFF, x=5, y=25)
extra_info.append(man_text)
prod_header = label.Label(terminalio.FONT, text="Product:", color=0xFFFFFF, x=5, y=40)
extra_info.append(prod_header)
prod_text = label.Label(terminalio.FONT, text=" ", color=0xFFFFFF, x=5, y=55)
extra_info.append(prod_text)
# init A, B and C buttons on FeatherWing as keypad keys
keys = keypad.Keys((board.D5,board.D6,board.D9,), value_when_pressed=False, pull=True)
# variables
last_pid = 0x0000 # store last PID
last_vid = 0x0000 # store last VID
usb_dev = False # is there a USB device?
first_run = True # first run through loop
group_index = 0 # display group index
while True:
event = keys.events.get()
if event:
# if any button is pressed, toggle graphics group
if event.pressed:
group_index = (group_index + 1) % 2
display.root_group = groups[group_index]
# find connected devices
devices = list(usb.core.find(find_all=True))
# if no device, reset states and text objects
if not devices and usb_dev or first_run:
print("no device")
pid_text.text = "PID:"
vid_text.text = "VID:"
man_text.text = " "
prod_text.text = " "
usb_dev = False
first_run = False
else:
if not usb_dev:
first_run = False
for device in devices:
try:
# if its the same device, don't scan again
if (last_pid == hex(device.idProduct) and
last_vid == hex(device.idVendor) and usb_dev):
break
# new device!
usb_dev = True
# get PID, VID, manufacturer and product
# update text elements
print("pid", hex(device.idProduct))
last_pid = hex(device.idProduct)
pid_text.text = f"PID: {last_pid}"
print("vid", hex(device.idVendor))
last_vid = hex(device.idVendor)
vid_text.text = f"VID: {last_vid}"
print("man", device.manufacturer)
# only update manufacturer and product if info is known
if device.manufacturer is not None:
man_text.text = device.manufacturer
print("product", device.product)
if device.product is not None:
prod_text.text = device.product
print()
# if there's any error reading info from a USB device, continue
except usb.core.USBError:
print("got an error, continuing..")
continue
Upload the Code and Libraries to the Feather RP2040 USB Host
After downloading the Project Bundle, plug your Feather RP2040 USB Host into the computer's USB port with a known good USB data+power cable. You should see a new flash drive appear in the computer's File Explorer or Finder (depending on your operating system) called CIRCUITPY. Unzip the folder and copy the following items to the Feather RP2040 USB Host's CIRCUITPY drive.
- lib folder
- code.py

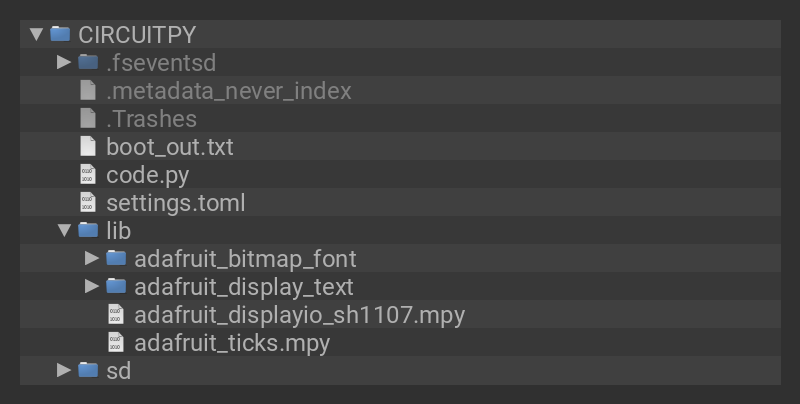

Your Feather RP2040 USB Host CIRCUITPY drive should look like this after copying the lib folder and code.py file:
displayio.release_displays() # init display i2c = board.I2C() display_bus = I2CDisplayBus(i2c, device_address=0x3C) display = adafruit_displayio_sh1107.SH1107(display_bus, width=128, height=64)
Two display groups are used. The main group has the title text and VID/PID text. The extra_info group has the manufacturer text and product name text. Each of these text objects are initialized as Labels.
# text groups main = displayio.Group() extra_info = displayio.Group() groups = [main, extra_info] display.root_group = main # text objects for title, VID and PID title_text = label.Label(terminalio.FONT, text="USB VID/PID Reporter", color=0xFFFFFF, x=5, y=15) main.append(title_text) vid_text = label.Label(terminalio.FONT, text="VID:", color=0xFFFFFF, x=5, y=35) main.append(vid_text) pid_text = label.Label(terminalio.FONT, text="PID:", color=0xFFFFFF, x=5, y=50) main.append(pid_text) # text objects for manufacturer and product info # added to secondary group man_header = label.Label(terminalio.FONT, text="Manufacturer:", color=0xFFFFFF, x=5, y=10) extra_info.append(man_header) man_text = label.Label(terminalio.FONT, text=" ", color=0xFFFFFF, x=5, y=25) extra_info.append(man_text) prod_header = label.Label(terminalio.FONT, text="Product:", color=0xFFFFFF, x=5, y=40) extra_info.append(prod_header) prod_text = label.Label(terminalio.FONT, text=" ", color=0xFFFFFF, x=5, y=55) extra_info.append(prod_text)
# init A, B and C buttons on FeatherWing as keypad keys keys = keypad.Keys((board.D5,board.D6,board.D9,), value_when_pressed=False, pull=True)
Variables
There are a few variables that are used in the loop. last_pid and last_vid hold the previously read VID and PID info. usb_dev checks if a USB device is plugged into the Feather. first_run lets the loop know that its the first time the loop is running. group_index is the display group into that lets you toggle between the main group or the extra_info group.
# variables last_pid = 0x0000 # store last PID last_vid = 0x0000 # store last VID usb_dev = False # is there a USB device? first_run = True # first run through loop group_index = 0 # display group index
The Loop
All three of the FeatherWing buttons are monitored for keypad events. If any of the three buttons are pressed, then the display group is toggled.
while True:
event = keys.events.get()
if event:
# if any button is pressed, toggle graphics group
if event.pressed:
group_index = (group_index + 1) % 2
display.root_group = groups[group_index]
Find the Devices
devices holds a list of connected and mounted USB devices to the USB host peripheral. If no device is found, then the OLED will only show the project title text and clear any previous USB info that was being displayed.
# find connected devices
devices = list(usb.core.find(find_all=True))
# if no device, reset states and text objects
if not devices and usb_dev or first_run:
print("no device")
pid_text.text = "PID:"
vid_text.text = "VID:"
man_text.text = " "
prod_text.text = " "
usb_dev = False
first_run = False
If there is a connected USB device, the text objects are updated to show the VID, PID, manufacturer and product information. Sometimes USB devices do not have manufacturer or product information, so there is error handling to prevent exceptions if that information isn't present to update the text objects. Additionally, if there are any USBError exceptions, the loop will continue.
else:
if not usb_dev:
first_run = False
for device in devices:
try:
# if its the same device, don't scan again
if (last_pid == hex(device.idProduct) and
last_vid == hex(device.idVendor) and usb_dev):
break
# new device!
usb_dev = True
# get PID, VID, manufacturer and product
# update text elements
print("pid", hex(device.idProduct))
last_pid = hex(device.idProduct)
pid_text.text = f"PID: {last_pid}"
print("vid", hex(device.idVendor))
last_vid = hex(device.idVendor)
vid_text.text = f"VID: {last_vid}"
print("man", device.manufacturer)
# only update manufacturer and product if info is known
if device.manufacturer is not None:
man_text.text = device.manufacturer
print("product", device.product)
if device.product is not None:
prod_text.text = device.product
print()
# if there's any error reading info from a USB device, continue
except usb.core.USBError:
print("got an error, continuing..")
continue
Page last edited October 14, 2025
