Project guide
Code the Player
Once you've finished setting up your RP2350 Feather with CircuitPython, you can access the code and necessary libraries by downloading the Project Bundle.

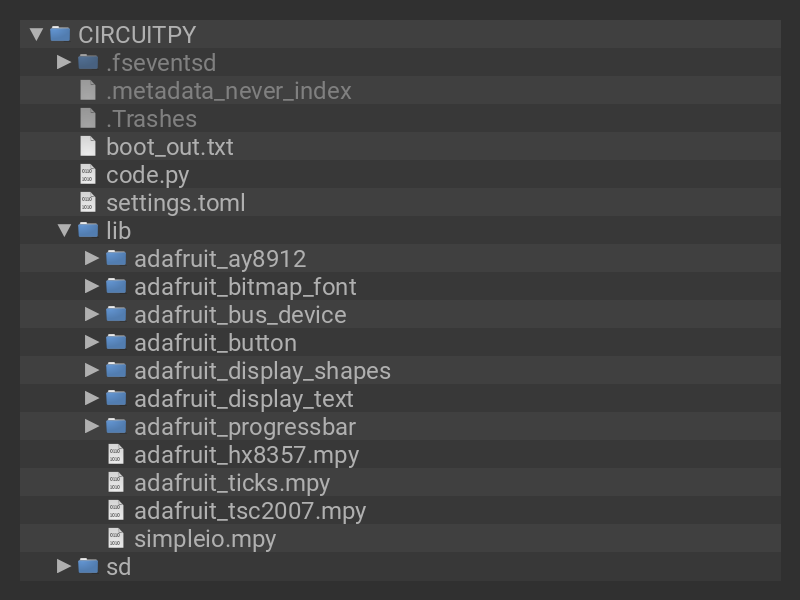

To do this, click on the Download Project Bundle button in the window below. It will download to your computer as a zipped folder.
# SPDX-FileCopyrightText: 2026 Liz Clark for Adafruit Industries
#
# SPDX-License-Identifier: MIT
"""CircuitPython Chiptune Player
Uses AY8912 emulator helper library to play VGM files
through I2S DAC. TFT FeatherWing for touchscreen GUI"""
import time
import os
import gc
import board
import displayio
import fourwire
import storage
import sdcardio
from adafruit_hx8357 import HX8357
import simpleio
from adafruit_button import Button
import adafruit_tsc2007
import terminalio
from adafruit_display_text import label as text_label
import audiobusio
from adafruit_progressbar.horizontalprogressbar import (
HorizontalProgressBar,
HorizontalFillDirection,
)
from adafruit_ay8912.ay8912_emulator import AY8912
from adafruit_ay8912.vgm_player import VGMFile
displayio.release_displays()
spi = board.SPI()
SD_CS = board.D5
VGM_EXTS = (".vgm", ".vgz")
playlist = []
for attempt in range(3):
try:
sdcard = sdcardio.SDCard(spi, SD_CS)
vfs = storage.VfsFat(sdcard)
storage.mount(vfs, "/sd")
playlist = sorted(
(n for n in os.listdir("/sd") if n.lower().endswith(VGM_EXTS)),
key=lambda n: n.lower(),
)
print(f"Found {len(playlist)} VGM file(s) on SD")
break
except OSError as exc:
print(f"SD init attempt {attempt + 1} failed:", exc)
time.sleep(0.25)
else:
print("SD card not available - running with an empty playlist.")
# init display after sd card
tft_cs = board.D9
tft_dc = board.D10
display_bus = fourwire.FourWire(spi, command=tft_dc, chip_select=tft_cs)
display = HX8357(display_bus, width=320, height=480, rotation=90) # portrait
SCREEN_W = 320
SCREEN_H = 480
i2c = board.I2C()
tsc = adafruit_tsc2007.TSC2007(i2c, invert_x=True, invert_y=True)
audio = audiobusio.I2SOut(board.A1, board.A2, board.A3)
# touch screen buttons
OUTLINE = 0xFF00FF
LABEL_COLOR = 0x000000
# pylint: disable=global-statement, too-many-branches
def make_button(action, x, y, w, h, label, fill, label_color=LABEL_COLOR):
"""Build a Button and tag it with the action it triggers."""
b = Button(
x=x, y=y, width=w, height=h,
style=Button.ROUNDRECT,
fill_color=fill,
outline_color=OUTLINE,
label=label,
label_font=terminalio.FONT,
label_color=label_color,
)
return b, action
def fmt_time(seconds):
"""Seconds -> 'M:SS'."""
seconds = int(seconds)
return f"{seconds // 60}:{seconds % 60:02d}"
def fit(text, maxchars):
"""Truncate long strings so they don't overrun the screen."""
if len(text) > maxchars:
return text[:maxchars - 3] + "..."
return text
# ====================================================================
# PLAY VIEW
# ====================================================================
play_group = displayio.Group()
# Repeat toggle, top-left. Its "selected" state is the lit state:
# off -> black body + cyan text; on -> cyan body + black text.
repeat_button = Button(
x=6, y=8, width=76, height=34,
style=Button.ROUNDRECT,
fill_color=0x000000, outline_color=OUTLINE,
label="REPEAT", label_font=terminalio.FONT, label_color=0x00FFFF,
selected_fill=0x00FFFF, selected_label=0x000000,
)
play_group.append(repeat_button)
# Track info, centered in the open top area (filled in by load_track).
NP_X = SCREEN_W // 2
title_label = text_label.Label(terminalio.FONT, text="(no track)", color=0x00FFFF,
scale=2, anchor_point=(0.5, 0.5), anchored_position=(NP_X, 150))
author_label = text_label.Label(terminalio.FONT, text="", color=0xFFFF00,
anchor_point=(0.5, 0.5), anchored_position=(NP_X, 182))
game_label = text_label.Label(terminalio.FONT, text="", color=0xFF00FF,
anchor_point=(0.5, 0.5), anchored_position=(NP_X, 204))
play_group.append(title_label)
play_group.append(author_label)
play_group.append(game_label)
# Progress bar + time readout.
BAR_W, BAR_H = 288, 24
BAR_X = (SCREEN_W - BAR_W) // 2
BAR_Y = 360
progress_bar = HorizontalProgressBar(
(BAR_X, BAR_Y), (BAR_W, BAR_H),
min_value=0.0, max_value=1.0, value=0.0,
bar_color=0x00FFFF, outline_color=0xFF00FF, fill_color=0x000000,
direction=HorizontalFillDirection.LEFT_TO_RIGHT,
)
play_group.append(progress_bar)
time_label = text_label.Label(terminalio.FONT, text="0:00 / 0:00", color=0x00FFFF,
anchor_point=(1.0, 1.0), anchored_position=(BAR_X + BAR_W, BAR_Y - 4))
play_group.append(time_label)
# Transport row: STOP << PLAY/PAUSE >> MENU
ROW_Y = 400
BTN_H = 55
PLAY_W = 84
CTRL_W = 50
GAP = 6
play_x = (SCREEN_W - PLAY_W) // 2
rew_x = play_x - GAP - CTRL_W
stop_x = rew_x - GAP - CTRL_W
ffwd_x = play_x + PLAY_W + GAP
menu_x = ffwd_x + CTRL_W + GAP
play_buttons = [repeat_button]
play_actions = ["repeat"]
for btn, act in (
make_button("stop", stop_x, ROW_Y, CTRL_W, BTN_H, "STOP", 0xFF0000),
make_button("prev", rew_x, ROW_Y, CTRL_W, BTN_H, "<<", 0xFF00FF),
make_button("play", play_x, ROW_Y, PLAY_W, BTN_H, "PLAY", 0x00FFFF),
make_button("next", ffwd_x, ROW_Y, CTRL_W, BTN_H, ">>", 0xFFFF00),
make_button("show_menu", menu_x, ROW_Y, CTRL_W, BTN_H, "MENU", 0x000000, 0xFFFFFF),
):
play_group.append(btn)
play_buttons.append(btn)
play_actions.append(act)
play_button = play_buttons[3] # the PLAY/PAUSE button (for label toggling)
# ====================================================================
# MENU VIEW (for selecting tracks)
# ====================================================================
menu_group = displayio.Group()
MENU_X, MENU_W = 10, 300
MENU_ROW_H, MENU_ROW_GAP, MENU_TOP = 38, 4, 8
PER_PAGE = 9
# Persistent bottom nav row: [<] NOW PLAYING [>]
NAV_Y, NAV_H = 420, 52
PAGE_W = 56
prevpage_btn, _ = make_button("page_prev", MENU_X, NAV_Y, PAGE_W, NAV_H, "<", 0x000000, 0x00FFFF)
np_btn, _ = make_button("show_play", MENU_X + PAGE_W + GAP, NAV_Y,
MENU_W - 2 * (PAGE_W + GAP), NAV_H, "NOW PLAYING", 0x00FFFF)
nextpage_btn, _ = make_button("page_next", MENU_X + MENU_W - PAGE_W, NAV_Y,
PAGE_W, NAV_H, ">", 0x000000, 0x00FFFF)
for btn in (prevpage_btn, np_btn, nextpage_btn):
menu_group.append(btn)
page_label = text_label.Label(terminalio.FONT, text="", color=0x888893,
anchor_point=(0.5, 0.5), anchored_position=(NP_X, 404))
menu_group.append(page_label)
if not playlist:
menu_group.append(text_label.Label(
terminalio.FONT, text="No VGM files found on /sd", color=0xFFFFFF,
anchor_point=(0.5, 0.5), anchored_position=(NP_X, 180)))
file_buttons = []
menu_page = 0
menu_buttons = [prevpage_btn, np_btn, nextpage_btn]
menu_actions = ["page_prev", "show_play", "page_next"]
# ====================================================================
# AY8912 emulator setup
# ====================================================================
ay = AY8912(sample_rate=22050, clock_rate=1773400)
ay.begin(audio)
vgm = None
song_duration = 0.0
current_index = 0
is_playing = False
is_paused = False
repeat_mode = False
last_progress = -1.0
last_sec = -1
current_view = "play"
wait_release = False
def build_menu_page(page):
"""(Re)build the file buttons for the requested page, with wraparound."""
global menu_page, menu_buttons, menu_actions, file_buttons
if not playlist:
return
num_pages = (len(playlist) + PER_PAGE - 1) // PER_PAGE
menu_page = page % num_pages
for fb in file_buttons: # clear the previous page
menu_group.remove(fb)
file_buttons = []
fb_actions = []
gc.collect()
start = menu_page * PER_PAGE
for slot, idx in enumerate(range(start, min(start + PER_PAGE, len(playlist)))):
y = MENU_TOP + slot * (MENU_ROW_H + MENU_ROW_GAP)
b, _ = make_button(idx, MENU_X, y, MENU_W, MENU_ROW_H,
fit(playlist[idx], 30), 0x000000, 0x00FFFF)
menu_group.append(b)
file_buttons.append(b)
fb_actions.append(idx)
menu_buttons = file_buttons + [prevpage_btn, np_btn, nextpage_btn]
menu_actions = fb_actions + ["page_prev", "show_play", "page_next"]
page_label.text = f"page {menu_page + 1} / {num_pages}"
def load_track(track_index):
"""Load (but don't start) the track at playlist index"""
global vgm, song_duration, current_index, last_progress, last_sec
if not playlist:
return
current_index = track_index % len(playlist)
gc.collect()
display.auto_refresh = False
try:
vgm = VGMFile("/sd/" + playlist[current_index])
finally:
display.auto_refresh = True
ay.clock_rate = vgm.clock_hz
song_duration = vgm.duration
title_label.text = fit(vgm.title or playlist[current_index], 24)
author_label.text = fit(vgm.author, 40)
game_label.text = fit(vgm.game, 40)
progress_bar.value = 0.0
last_progress = -1.0
last_sec = -1
time_label.text = f"{fmt_time(0)} / {fmt_time(song_duration)}"
def play_track(track_index):
"""Load track index and start it from the beginning."""
global is_playing, is_paused
if not playlist:
return
load_track(track_index)
if vgm is None:
return
vgm.play(ay)
is_playing = True
is_paused = False
play_button.label = "PAUSE"
def change_track(delta):
"""Step the playlist with wraparound and play."""
if not playlist:
return
play_track((current_index + delta) % len(playlist))
def show_menu():
global current_view, wait_release
current_view = "menu"
display.root_group = menu_group
wait_release = True
def show_play():
global current_view, wait_release
current_view = "play"
display.root_group = play_group
wait_release = True
def dispatch(action):
"""Run once per fresh button tap (rising edge)."""
global is_playing, is_paused, repeat_mode, last_progress, last_sec
if action == "show_menu":
show_menu()
elif action == "show_play":
show_play()
elif action == "page_prev":
build_menu_page(menu_page - 1)
elif action == "page_next":
build_menu_page(menu_page + 1)
elif action == "repeat":
repeat_mode = not repeat_mode
repeat_button.selected = repeat_mode # lit when on
elif isinstance(action, int): # a file was picked in the menu
play_track(action)
show_play()
elif action == "play":
if vgm is None:
return
if not is_playing and not is_paused:
vgm.play(ay)
is_playing = True
play_button.label = "PAUSE"
last_progress = -1.0
last_sec = -1
elif is_playing:
is_playing = False # pause: stop pumping + mute
is_paused = True
play_button.label = "PLAY"
else:
is_paused = False # resume
is_playing = True
play_button.label = "PAUSE"
elif action == "stop":
if vgm is not None:
vgm.stop() # halts + resets the AY (silence)
is_playing = False
is_paused = False
play_button.label = "PLAY"
progress_bar.value = 0.0
last_progress = 0.0
time_label.text = f"{fmt_time(0)} / {fmt_time(song_duration)}"
last_sec = 0
elif action == "prev":
change_track(-1)
elif action == "next":
change_track(1)
def touched_index(the_btns):
"""Index of the button in btns under the touch, or None."""
if not tsc.touched:
return None
point = tsc.touch
if point["pressure"] < 100:
return None
p = (
simpleio.map_range(point['x'], 430, 3700, 0, 320),
simpleio.map_range(point['y'], 315, 3800, 0, 480),
)
for ind, the_btn in enumerate(the_btns):
if the_btn.contains(p):
return ind
return None
# --- Boot into the menu with the first track pre-loaded (stopped) ---
if playlist:
build_menu_page(0)
load_track(0)
show_menu()
# --- Main loop ---
POLL_INTERVAL = 0.02
last_index = None
last_poll = time.monotonic()
while True:
# Feed audio as tightly as possible, in any view.
if is_playing and vgm is not None:
vgm.update()
if not vgm.playing: # track reached its end
if repeat_mode:
vgm.play(ay) # replay the same track (no SD reload)
last_progress = -1.0
last_sec = -1
else:
change_track(1) # auto-advance, wraps at the end
elif vgm.loop_count >= 1 and not repeat_mode:
change_track(1) # looping file finished a pass; move on
now = time.monotonic()
if now - last_poll >= POLL_INTERVAL:
last_poll = now
btns = play_buttons if current_view == "play" else menu_buttons
acts = play_actions if current_view == "play" else menu_actions
index = touched_index(btns)
for i, btn in enumerate(btns):
if btn is repeat_button: # its lit state reflects repeat_mode, not touch
continue
btn.selected = i == index
if wait_release:
if index is None: # finger lifted; accept presses again
wait_release = False
last_index = index
else:
if index is not None and index != last_index:
dispatch(acts[index])
last_index = index
if is_playing and vgm is not None:
progress = vgm.progress
if abs(progress - last_progress) >= 0.01:
progress_bar.value = progress
last_progress = progress
sec = int(vgm.elapsed)
if sec != last_sec:
time_label.text = f"{fmt_time(sec)} / {fmt_time(song_duration)}"
last_sec = sec
Upload the Code and Libraries to the RP2350 Feather
After downloading the Project Bundle, plug your RP2350 Feather into the computer's USB port with a known good USB data+power cable. You should see a new flash drive appear in the computer's File Explorer or Finder (depending on your operating system) called CIRCUITPY. Unzip the folder and copy the following items to the RP2350 Feather's CIRCUITPY drive.
- lib folder
- code.py
Your RP2350 Feather CIRCUITPY drive should look like this after copying the lib folder and code.py file:
There is an example VGM track (computer_music.vgz) included in the bundle. You can copy this file to your microSD card for testing.
How the CircuitPython Code Works
After SPI is initialized, the SD card is mounted. A search is performed in the /sd directory for any video game music (.VGM) audio files. These files are added to the playlist list.
displayio.release_displays()
spi = board.SPI()
SD_CS = board.D5
VGM_EXTS = (".vgm", ".vgz")
playlist = []
for attempt in range(3):
try:
sdcard = sdcardio.SDCard(spi, SD_CS)
vfs = storage.VfsFat(sdcard)
storage.mount(vfs, "/sd")
playlist = sorted(
(n for n in os.listdir("/sd") if n.lower().endswith(VGM_EXTS)),
key=lambda n: n.lower(),
)
print(f"Found {len(playlist)} VGM file(s) on SD")
break
except OSError as exc:
print(f"SD init attempt {attempt + 1} failed:", exc)
time.sleep(0.25)
else:
print("SD card not available - running with an empty playlist.")
Display and Audio Init
Next is the display initialization with the TSC2007 touchscreen driver. I2S audio is initialized for the I2S DAC.
# init display after sd card tft_cs = board.D9 tft_dc = board.D10 display_bus = fourwire.FourWire(spi, command=tft_dc, chip_select=tft_cs) display = HX8357(display_bus, width=320, height=480, rotation=90) # portrait SCREEN_W = 320 SCREEN_H = 480 i2c = board.I2C() tsc = adafruit_tsc2007.TSC2007(i2c, invert_x=True, invert_y=True) audio = audiobusio.I2SOut(board.A1, board.A2, board.A3)
Graphics
There are two display groups: play_group and menu_group. menu_group shows the list of VGM files loaded from the SD card. Each file name is shown in a touch button to select for playback.
# ====================================================================
# MENU VIEW (for selecting tracks)
# ====================================================================
menu_group = displayio.Group()
MENU_X, MENU_W = 10, 300
MENU_ROW_H, MENU_ROW_GAP, MENU_TOP = 38, 4, 8
PER_PAGE = 9
# Persistent bottom nav row: [<] NOW PLAYING [>]
NAV_Y, NAV_H = 420, 52
PAGE_W = 56
prevpage_btn, _ = make_button("page_prev", MENU_X, NAV_Y, PAGE_W, NAV_H, "<", 0x000000, 0x00FFFF)
np_btn, _ = make_button("show_play", MENU_X + PAGE_W + GAP, NAV_Y,
MENU_W - 2 * (PAGE_W + GAP), NAV_H, "NOW PLAYING", 0x00FFFF)
nextpage_btn, _ = make_button("page_next", MENU_X + MENU_W - PAGE_W, NAV_Y,
PAGE_W, NAV_H, ">", 0x000000, 0x00FFFF)
for btn in (prevpage_btn, np_btn, nextpage_btn):
menu_group.append(btn)
page_label = text_label.Label(terminalio.FONT, text="", color=0x888893,
anchor_point=(0.5, 0.5), anchored_position=(NP_X, 404))
menu_group.append(page_label)
if not playlist:
menu_group.append(text_label.Label(
terminalio.FONT, text="No VGM files found on /sd", color=0xFFFFFF,
anchor_point=(0.5, 0.5), anchored_position=(NP_X, 180)))
file_buttons = []
menu_page = 0
menu_buttons = [prevpage_btn, np_btn, nextpage_btn]
menu_actions = ["page_prev", "show_play", "page_next"]
The play_group has all of the playback controls: stop, play, pause, forward, backward and repeat. The "now playing" info is shown in the middle of the display and a HorizontalProgressBar shows the playback progress.
# ====================================================================
# PLAY VIEW
# ====================================================================
play_group = displayio.Group()
# Repeat toggle, top-left. Its "selected" state is the lit state:
# off -> black body + cyan text; on -> cyan body + black text.
repeat_button = Button(
x=6, y=8, width=76, height=34,
style=Button.ROUNDRECT,
fill_color=0x000000, outline_color=OUTLINE,
label="REPEAT", label_font=terminalio.FONT, label_color=0x00FFFF,
selected_fill=0x00FFFF, selected_label=0x000000,
)
play_group.append(repeat_button)
# Track info, centered in the open top area (filled in by load_track).
NP_X = SCREEN_W // 2
title_label = text_label.Label(terminalio.FONT, text="(no track)", color=0x00FFFF,
scale=2, anchor_point=(0.5, 0.5), anchored_position=(NP_X, 150))
author_label = text_label.Label(terminalio.FONT, text="", color=0xFFFF00,
anchor_point=(0.5, 0.5), anchored_position=(NP_X, 182))
game_label = text_label.Label(terminalio.FONT, text="", color=0xFF00FF,
anchor_point=(0.5, 0.5), anchored_position=(NP_X, 204))
play_group.append(title_label)
play_group.append(author_label)
play_group.append(game_label)
# Progress bar + time readout.
BAR_W, BAR_H = 288, 24
BAR_X = (SCREEN_W - BAR_W) // 2
BAR_Y = 360
progress_bar = HorizontalProgressBar(
(BAR_X, BAR_Y), (BAR_W, BAR_H),
min_value=0.0, max_value=1.0, value=0.0,
bar_color=0x00FFFF, outline_color=0xFF00FF, fill_color=0x000000,
direction=HorizontalFillDirection.LEFT_TO_RIGHT,
)
play_group.append(progress_bar)
time_label = text_label.Label(terminalio.FONT, text="0:00 / 0:00", color=0x00FFFF,
anchor_point=(1.0, 1.0), anchored_position=(BAR_X + BAR_W, BAR_Y - 4))
play_group.append(time_label)
# Transport row: STOP << PLAY/PAUSE >> MENU
ROW_Y = 400
BTN_H = 55
PLAY_W = 84
CTRL_W = 50
GAP = 6
play_x = (SCREEN_W - PLAY_W) // 2
rew_x = play_x - GAP - CTRL_W
stop_x = rew_x - GAP - CTRL_W
ffwd_x = play_x + PLAY_W + GAP
menu_x = ffwd_x + CTRL_W + GAP
play_buttons = [repeat_button]
play_actions = ["repeat"]
for btn, act in (
make_button("stop", stop_x, ROW_Y, CTRL_W, BTN_H, "STOP", 0xFF0000),
make_button("prev", rew_x, ROW_Y, CTRL_W, BTN_H, "<<", 0xFF00FF),
make_button("play", play_x, ROW_Y, PLAY_W, BTN_H, "PLAY", 0x00FFFF),
make_button("next", ffwd_x, ROW_Y, CTRL_W, BTN_H, ">>", 0xFFFF00),
make_button("show_menu", menu_x, ROW_Y, CTRL_W, BTN_H, "MENU", 0x000000, 0xFFFFFF),
):
play_group.append(btn)
play_buttons.append(btn)
play_actions.append(act)
play_button = play_buttons[3] # the PLAY/PAUSE button (for label toggling)
# ==================================================================== # AY8912 emulator setup # ==================================================================== ay = AY8912(sample_rate=22050, clock_rate=1773400) ay.begin(audio) vgm = None song_duration = 0.0 current_index = 0 is_playing = False is_paused = False repeat_mode = False last_progress = -1.0 last_sec = -1 current_view = "play" wait_release = False
Helpers
There are a few helper functions:
-
build_menu_page()- builds out the file selection buttons in themenu_group. Handles overflow to multiple pages. -
load_track()- queues up the next VGM file for playback -
play_track()- plays the VGM file and handles play/pause controls -
change_track()- changes track based on the forward or backward button inputs -
show_menu()- switches to themenu_group -
show_play()- switches to theplay_group -
dispatch()- handle buttons inputs and change states or values depending on which button is pressed -
touched_index()- tracks if a button contains a touch point on the screen
while True:
# Feed audio as tightly as possible, in any view.
if is_playing and vgm is not None:
vgm.update()
if not vgm.playing: # track reached its end
if repeat_mode:
vgm.play(ay) # replay the same track (no SD reload)
last_progress = -1.0
last_sec = -1
else:
change_track(1) # auto-advance, wraps at the end
elif vgm.loop_count >= 1 and not repeat_mode:
change_track(1) # looping file finished a pass; move on
time.monotonic() is used as a non-blocking time tracker. During the POLL_INTERVAL, the buttons are checked for any inputs. If you are on the playback screen, the progress bar position is also updated.
now = time.monotonic()
if now - last_poll >= POLL_INTERVAL:
last_poll = now
btns = play_buttons if current_view == "play" else menu_buttons
acts = play_actions if current_view == "play" else menu_actions
index = touched_index(btns)
for i, btn in enumerate(btns):
if btn is repeat_button: # its lit state reflects repeat_mode, not touch
continue
btn.selected = i == index
if wait_release:
if index is None: # finger lifted; accept presses again
wait_release = False
last_index = index
else:
if index is not None and index != last_index:
dispatch(acts[index])
last_index = index
if is_playing and vgm is not None:
progress = vgm.progress
if abs(progress - last_progress) >= 0.01:
progress_bar.value = progress
last_progress = progress
sec = int(vgm.elapsed)
if sec != last_sec:
time_label.text = f"{fmt_time(sec)} / {fmt_time(song_duration)}"
last_sec = sec
Page last edited July 01, 2026
Text editor powered by tinymce.
