# SPDX-FileCopyrightText: 2026 Mikey Sklar, written for Adafruit Industries
#
# SPDX-License-Identifier: Unlicense

"""4-gray grayscale for the Adafruit 2.9" SSD1680 eInk FeatherWing (#4777), via adafruit_epd.

The framebuf path (companion to the displayio adafruit_ssd1680 driver). Reach for adafruit_epd
when you want external-SRAM offload or direct framebuffer access. 296x128 GDEM029T94 /
FPC-7519rev.b. Uses the upstream Adafruit_SSD1680_Grayscale4 class (colstart=0 hardcoded, 296
gate handled) — no library change; just vcom=0x24 for this panel.

FeatherWing wiring notes (differ from the #4197 EYESPI breakout):
  CS=D9  DC=D10  SCK/MOSI on the shared bus.
  BUSY is not connected on the Wing -> busy_pin=None (timed refresh).
  RST is on the Feather RESET line, not a GPIO -> the panel can only be woken by a Feather
  hardware reset, so we never deep-sleep it (power_down -> no-op). Run after a power-on/reset.
"""

import time

import board
import digitalio

from adafruit_epd.epd import Adafruit_EPD
from adafruit_epd.ssd1680 import Adafruit_SSD1680_Grayscale4


class WingGrayscale4(Adafruit_SSD1680_Grayscale4):
    # FeatherWing: RST is on the Feather RESET line, so the panel can't be GPIO-reset to wake
    # from deep sleep -> never deep-sleep it.
    def power_down(self):
        pass


spi = board.SPI()
cs = digitalio.DigitalInOut(board.D9)
dc = digitalio.DigitalInOut(board.D10)
rst = digitalio.DigitalInOut(board.D11)  # harmless on the Wing (RST not routed here)

display = WingGrayscale4(
    128,
    296,
    spi,
    cs_pin=cs,
    dc_pin=dc,
    sramcs_pin=None,
    rst_pin=rst,
    busy_pin=None,  # BUSY not connected on the Wing
    vcom=0x24,  # FPC-7519rev.b (the class default 0x1C is for GDEY0213B74)
)
display.rotation = 3  # landscape; matches the displayio driver's 270
W = display.width
print("Init OK — drawing 4-gray info card...")

display.fill(Adafruit_EPD.WHITE)
display.text("Adafruit ThinkInk", 6, 6, Adafruit_EPD.BLACK, size=2)
display.text('2.9" 296x128', 6, 28, Adafruit_EPD.BLACK, size=2)
display.text("4-Gray E-Ink", 6, 50, Adafruit_EPD.DARK, size=2)
display.text("SSD1680  #4777", 6, 74, Adafruit_EPD.BLACK, size=1)

# 4-level gray ramp across the bottom: black | dark | light | white
RAMP_TOP, RAMP_H = 100, 24
SEG = W // 4
ramp = (Adafruit_EPD.BLACK, Adafruit_EPD.DARK, Adafruit_EPD.LIGHT, Adafruit_EPD.WHITE)
for i, color in enumerate(ramp):
    x = i * SEG
    display.fill_rect(x, RAMP_TOP, SEG if i < 3 else W - x, RAMP_H, color)
display.rect(0, RAMP_TOP, W, RAMP_H, Adafruit_EPD.BLACK)
for i in range(1, 4):
    display.vline(i * SEG, RAMP_TOP, RAMP_H, Adafruit_EPD.BLACK)

print("Refreshing...")
t0 = time.monotonic()
display.display()
print(f"Done in {time.monotonic() - t0:.1f}s")

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

# SPDX-FileCopyrightText: 2021 ladyada for Adafruit Industries
# SPDX-License-Identifier: MIT

"""Simple test script for 2.9" 296x128 grayscale display.

Supported products:
  * Adafruit 2.9" Grayscale
    * https://www.adafruit.com/product/4777
"""

import time

import board
import busio
import displayio
import fourwire

import adafruit_il0373

displayio.release_displays()

# This pinout works on a Feather M4 and may need to be altered for other boards.
spi = busio.SPI(board.SCK, board.MOSI)  # Uses SCK and MOSI
epd_cs = board.D9
epd_dc = board.D10

display_bus = fourwire.FourWire(spi, command=epd_dc, chip_select=epd_cs, baudrate=1000000)
time.sleep(1)

display = adafruit_il0373.IL0373(
    display_bus,
    width=296,
    height=128,
    rotation=270,
    black_bits_inverted=False,
    color_bits_inverted=False,
    grayscale=True,
    refresh_time=1,
)

g = displayio.Group()

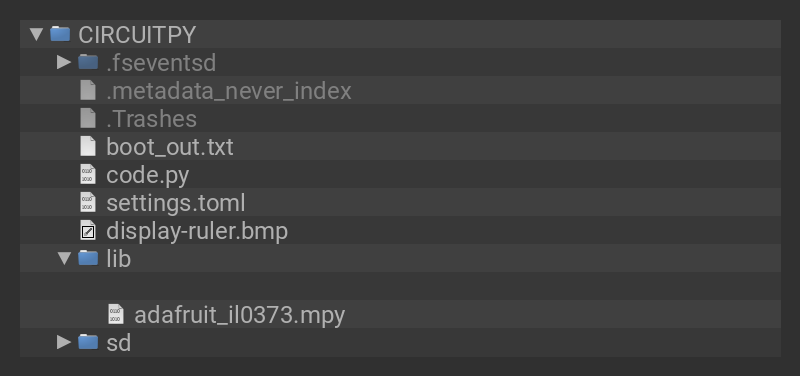

pic = displayio.OnDiskBitmap("/display-ruler.bmp")
t = displayio.TileGrid(pic, pixel_shader=pic.pixel_shader)
g.append(t)

display.root_group = g

display.refresh()

print("refreshed")
time.sleep(120)
